MicroSquirt Transmission Controller & 4L60E Harness

In stock
No reviews
$499.99
Product details
  • Vendor AMP
  • SKU Micro-Trans-4L60-PKG
Description Reviews

Easily manage your GM 4L60E transmission with the MicroSquirt CAN Transmission Controller and 4L60E Subharness. This system offers a clean, plug-and-play solution when paired with MS3Pro ECUs and directly connects to our LSx drop-on harnesses for quick and painless installation.

The included subharness supports 4L60E transmissions with or without the LUF (Lock-Up Feel) solenoid. It is ideal for GM vehicles running early 4L60E models and LS engine swaps using MS3Pro or other MegaSquirt-based ECUs. Communication is handled over CAN bus, allowing compatibility with MS2, MicroSquirt, MS3, and MS3Pro systems.

Note: This harness does not include wiring for the input shaft speed sensor found on later 4L65E and 4L70E transmissions.
Not compatible with 2009+ 4L60E transmissions.

Key Features:

  • Plug-and-play wiring harness for 4L60E with full MicroSquirt TCU support

  • Compatible with MS3Pro 24x and 58x drop-on harnesses

  • Supports models with and without the LUF solenoid

  • CAN bus integration with MS2, MS3, or another MicroSquirt ECU

  • Pre-configured MicroSquirt Transmission Controller

  • Simple setup and tuning via TunerStudio

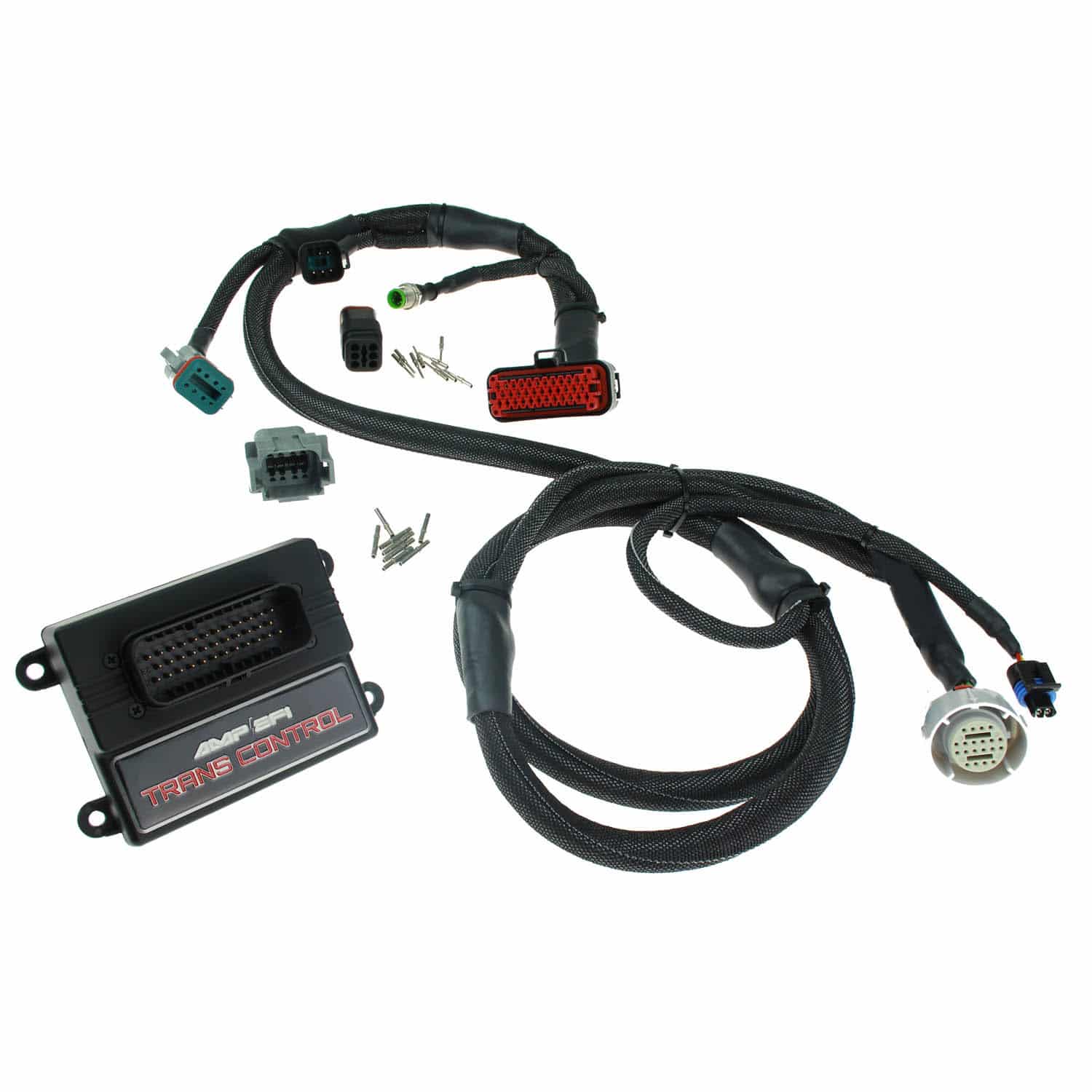

What’s Included:

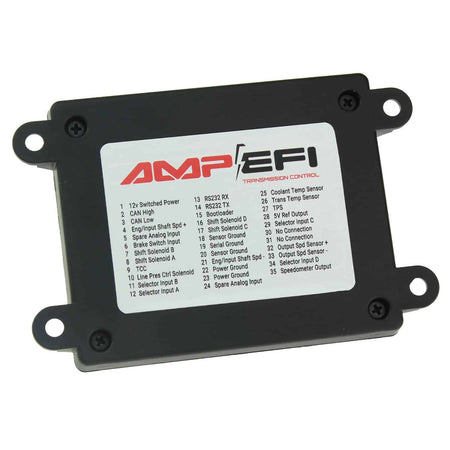

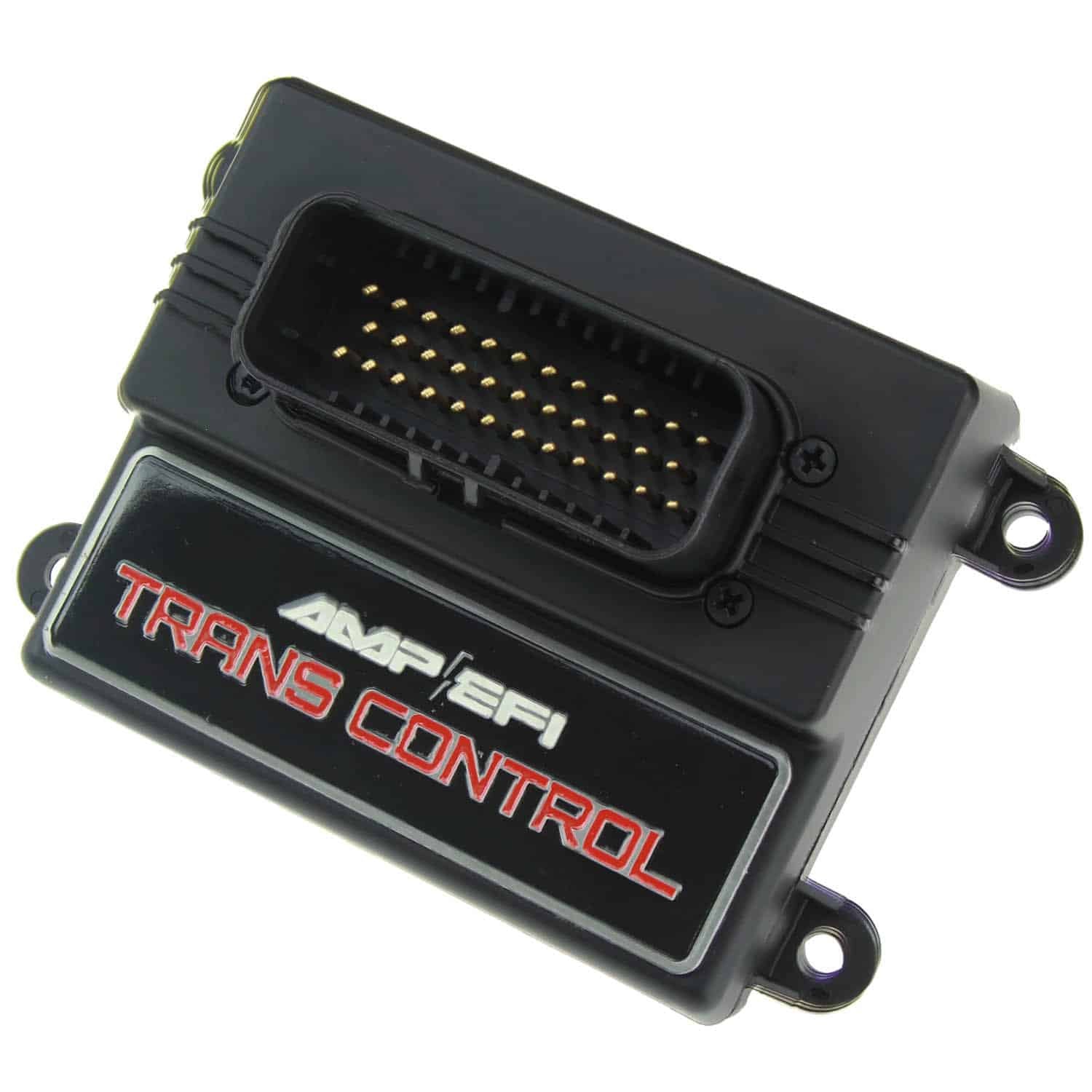

  • MicroSquirt Transmission Controller (loaded with 4L60E firmware)

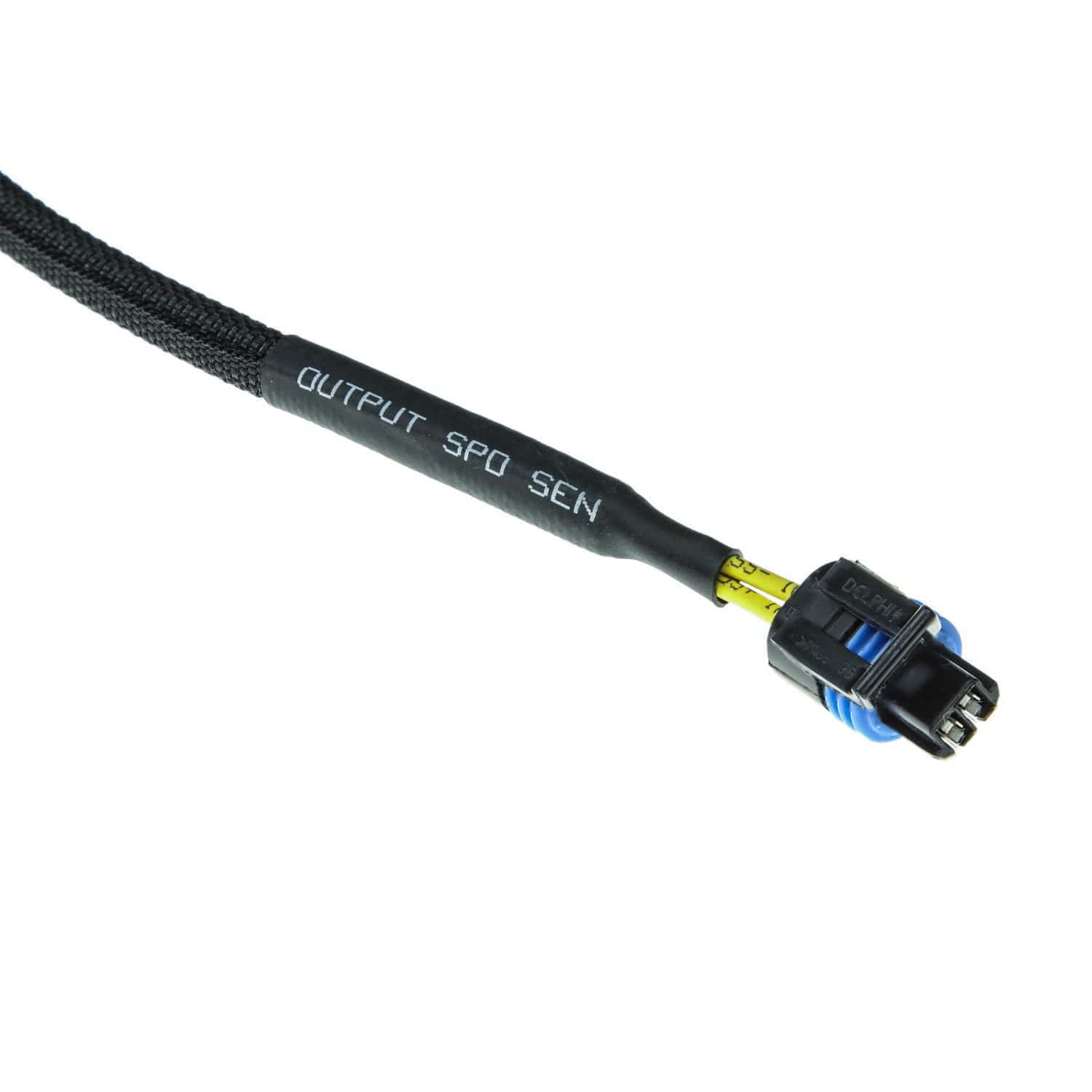

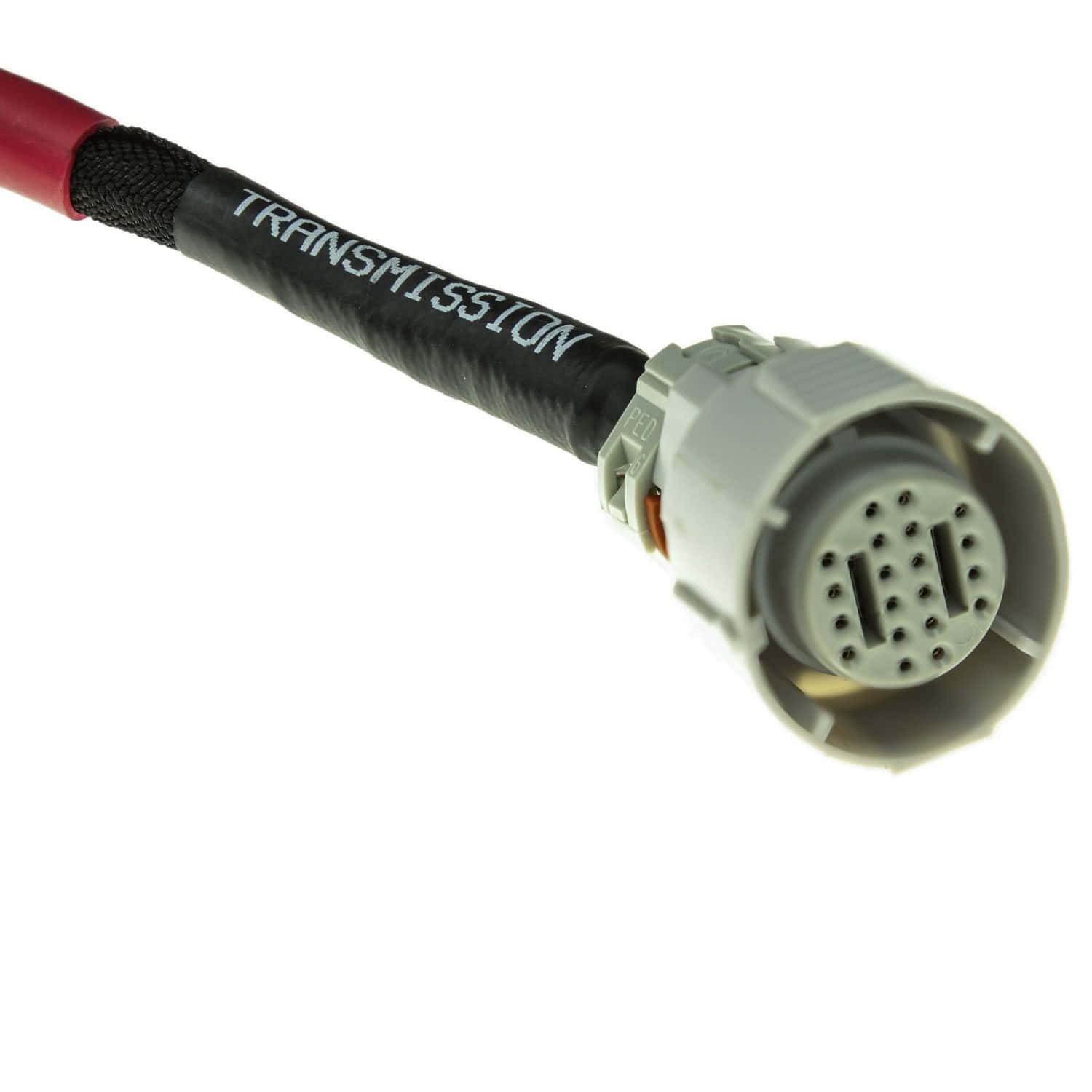

  • Fully terminated 4L60E plug-and-play wiring harness

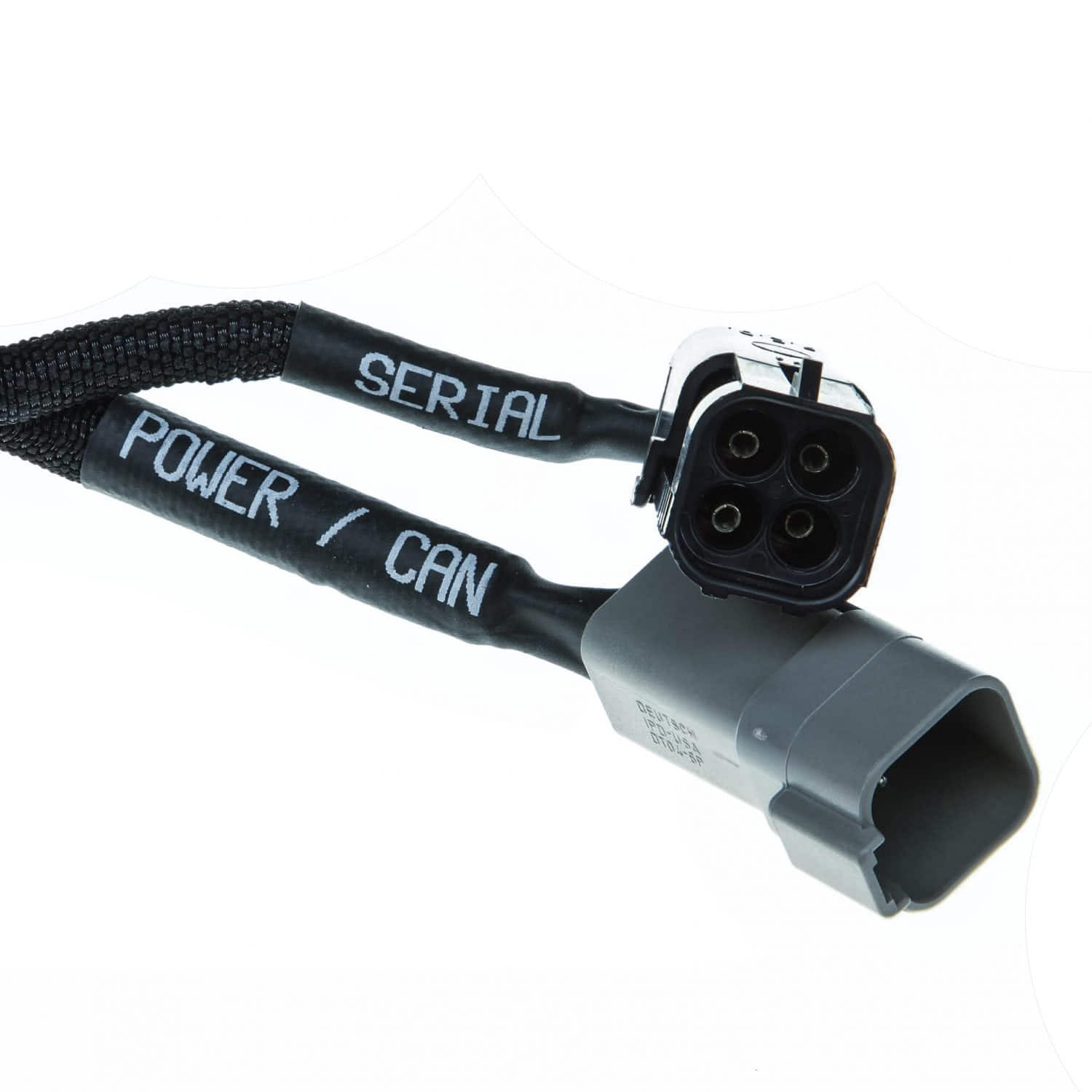

  • 6-pin black connector (power, ground, CAN)

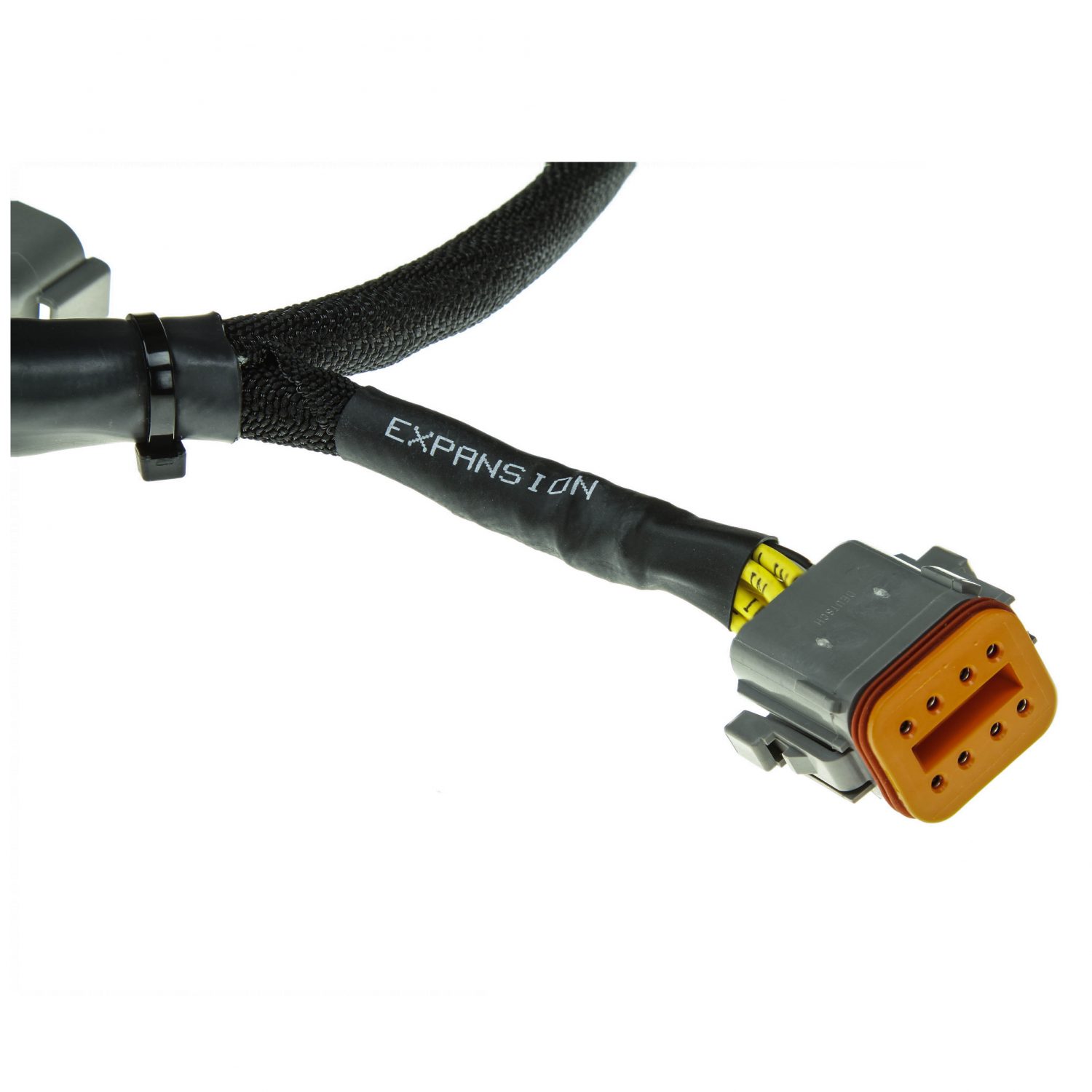

  • 8-pin gray connector (optional digital inputs)

  • 18 crimp pins for custom input connections
