Compact MS3Pro Wire‑In Standalone ECU for Up to 8 Cylinders
The MS3Pro Mini ECU is a palm‑sized wire‑in standalone engine management system built for performance projects where space is tight but control is critical. It delivers the core MS3Pro feature set—8 injector outputs, 4 logic‑level spark outputs, built‑in 4‑bar MAP and barometric pressure sensing, onboard SD card data logging, and CAN / RS232 connectivity—tuned in TunerStudio.
Jump to: Overview | Key Specs | Fuel & Ignition | I/O & Wiring | Software & Logging | Feature Highlights | What’s Included | Engine Compatibility | FAQ
What Is the MS3Pro Mini ECU?
The MS3Pro Mini is a compact standalone ECU for engines up to 8 cylinders. It provides 8 saturated (high‑impedance) injector outputs, 4 logic‑level ignition outputs, built‑in 4‑bar MAP and barometric sensors, internal SD card data logging, and CAN / RS232 connectivity—using MS firmware and tuned with TunerStudio.
- Small footprint: designed to fit where space is limited
- Real engine control: fuel, ignition, boost, traction, launch, nitrous, and more
- Built for flexibility: broad trigger support and configurable I/O for swaps and race wiring
MS3Pro Mini Key Specs (Quick Reference)
| Category | MS3Pro Mini Capability |
|---|---|
| Engine Support | Up to 8 cylinders (wire‑in standalone ECU) |
| Fuel Outputs | 8 high‑impedance saturated injector outputs (unused channels can be repurposed as general outputs) |
| Ignition Outputs | 4 logic‑level spark outputs (supports sequential ignition on many 4‑cyl setups; wasted‑spark / batch‑fire strategies for 6–8 cylinder use) |
| Built‑In Sensors | Onboard 4‑bar MAP sensor + 1‑bar barometric sensor |
| Data Logging | Internal SD card high‑speed logging |
| Connectivity | CAN bus + RS232 |
| Tuning Software | TunerStudio (license included with purchase) |
Fuel & Ignition Control (How People Actually Use It)
The MS3Pro Mini is designed to support a wide range of real‑world ignition and fuel setups, from street/strip builds to dedicated race cars.
- 4‑cylinder builds: sequential fuel and ignition support for many common configurations
- 6–8 cylinder builds: sequential fuel with wasted‑spark ignition strategies
- 2‑rotor Wankel: separate leading and trailing ignition outputs supported
This flexibility is a major reason the MS3Pro Mini is popular for swaps and custom wiring projects: you can match the ECU strategy to the engine architecture and ignition hardware you already have.
Inputs, Outputs & Wiring (Built for Custom Projects)
A wire‑in ECU is only as good as the I/O it gives you. MS3Pro Mini provides a strong core I/O set for sensors, switches, and motorsports strategies— and allows unused injector outputs to be repurposed for general purpose control when your setup doesn’t need all 8 injector channels.
- Injector outputs: 8 high‑impedance (saturated)
- Spark outputs: 4 logic‑level
- Cam/Crank inputs: 2 conditioned inputs (VR or Hall)
- Digital inputs: 3 (two support high‑frequency signals like speed)
- Analog inputs: 4 general purpose
- Dedicated sensor inputs: CLT, IAT/MAT, TPS
- Outputs: fuel pump control + general‑purpose PWM output (common uses: idle control, boost control, etc.)
- Connectivity: CAN + RS232
[View MS3Pro Mini Pinout Diagram (Full Size)]
Tuning Software, Self‑Learning Fuel & Data Logging
TunerStudio (License Included)
The MS3Pro Mini is tuned in TunerStudio, with support for real‑time tuning, custom dashboards, and self‑learning / self‑tuning fuel strategies to streamline calibration.
Firmware / Software Requirements
MS3Pro Mini requires MS Firmware v1.6.0+ and TunerStudio v3.2.0+. Always save your tune before updating firmware.
Onboard SD Card Data Logging
Internal SD card high‑speed data logging makes it easy to validate changes, diagnose issues, and improve consistency without needing an external logger for most setups.
- Software Downloads (TunerStudio, MegaLogViewer, Drivers) →
- Firmware & Base Tunes →
- Documentation & Support →
MS3Pro Mini Feature Highlights
Below are the most‑used capabilities tuners rely on for modern builds. If your project is boosted, flex‑fuel, traction‑limited, or power‑dense, these features are what turn “it runs” into “it’s controlled.”
Core Engine Management
- VE‑based tuning
- Speed Density, Alpha‑N, MAF, and blended algorithms
- 2D and 3D table views
- Individual cylinder fuel and spark trim tables
- Staged injection control with seamless transition strategies
- Fuel‑only mode (disable ignition outputs when needed)
- Long‑term fuel trim (OE‑style automatic fuel trim)
- Multiple acceleration enrichment strategies
- High‑power time enrichment for sustained load operation
Motorsports Strategies
- Boost control (open‑loop and closed‑loop strategies)
- Traction control (multiple strategies)
- Advanced launch control strategies
- Trans brake and bump box control
- Three‑step rev limiter with flat shift support
- Pit lane limiter / speed limiting strategies
- Nitrous control strategies
- Water and methanol injection control
- Solenoid output control (common uses: air shifter / drag applications)
Trigger & Ignition Flexibility
- Conditioned cam/crank inputs compatible with VR and Hall sensors
- On‑board pullups for Hall sensor setups
- Generic wheel decoder supports common trigger patterns (example: 60‑2, 36‑1, and many more)
- Supports 50+ OEM and aftermarket ignition modes using factory cam/crank wheels and sensors
- Supports odd fire and even fire engines, plus piston and rotary combinations
Controls, Outputs & Vehicle Functions
- Idle control with multiple open‑loop and closed‑loop strategies
- Cooling fan control
- Air conditioner control with feed‑forward idle‑up
- Alternator field control / voltage regulation
- Comprehensive test modes
Safety & Protection
- Multiple engine protection strategies and fault modes
- Spare I/O and analog inputs for custom safety sensors and strategies
Wideband O2 Support
MS3Pro Mini is compatible with your wideband O2 controller for AFR feedback and tuning workflows. If you’re building from scratch, choose a quality wideband solution and install it correctly—wideband data is the foundation of reliable calibration.
What’s Included (Choose Your Package)

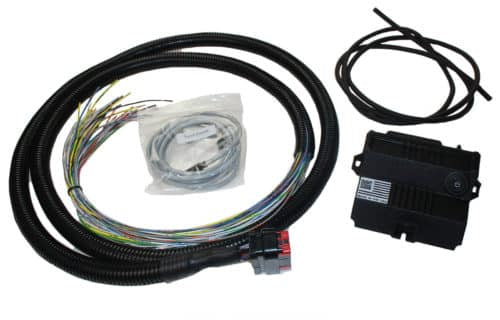

MS3Pro Mini ECU + Harness Package
- MS3Pro Mini Standalone EFI Controller
- 8’ flying lead harness
- USB FTDI serial USB adapter
- M8 tuning cable
- TunerStudio registration code
MS3Pro Mini ECU Only
- MS3Pro Mini Standalone EFI Controller
- TunerStudio registration code
Note: ECU‑only purchases do not include a harness, tuning cable, or USB adapter.
[See MS3Pro Mini Options & Packages]
Engine Compatibility (Popular Platforms)
MS3Pro Mini is engineered to support a wide range of common performance platforms right out of the box. It’s a strong fit for:
- Honda B‑, K‑, and F‑series
- Mazda B6/BP (including VVT)
- Mazda MZR / Ford Duratec
- Toyota 1JZ / 2JZ
- BMW M20 / M30 / M50
- 1–4 cylinder engines with distributor, wasted spark, or coil‑on‑plug ignition
- 6–8 cylinder engines with distributor or wasted spark ignition
- 2‑rotor Wankel with leading/trailing ignition outputs
Frequently Asked Questions
Is the MS3Pro Mini a standalone ECU?
Yes. MS3Pro Mini is a wire‑in standalone ECU designed for custom wiring, engine swaps, and motorsports builds where you want full control of fuel, ignition, and advanced strategies.
Does MS3Pro Mini support an 8‑cylinder engine?
Yes. It’s tailored for engines up to 8 cylinders with a distributor. Common configurations include sequential fuel control with wasted‑spark ignition strategies for many 4-6 cylinder combinations.
Can it run sequential fuel and ignition?
MS3Pro Mini supports sequential operation in common configurations—especially on many 4‑cylinder builds. For 6–8 cylinder builds, sequential fuel with wasted‑spark ignition strategies are commonly used. Your exact configuration depends on engine type, trigger pattern, and ignition hardware.
Does it include a wideband controller?
MS3Pro Mini is designed to be compatible with your wideband O2 controller. Choose a quality wideband system and install it correctly for accurate AFR feedback during tuning.
What tuning software do I need?
You’ll tune the MS3Pro Mini using TunerStudio. A license is included with purchase. MS3Pro Mini requires MS Firmware v1.6.0+ and TunerStudio v3.2.0+.
Does it support boost control, traction control, and launch control?
Yes. MS3Pro Mini supports boost control strategies, multiple traction control strategies, and advanced launch control features—commonly used in turbo builds and drag/roll racing applications.
Ready to Build a Compact, Capable Standalone Setup?
If you need MS3Pro‑level control in a compact footprint—fuel, ignition, logging, CAN connectivity, and modern motorsports features—the MS3Pro Mini ECU is built for the job.
