LDM 1/8 NPT 4-Bar MAP Sensor

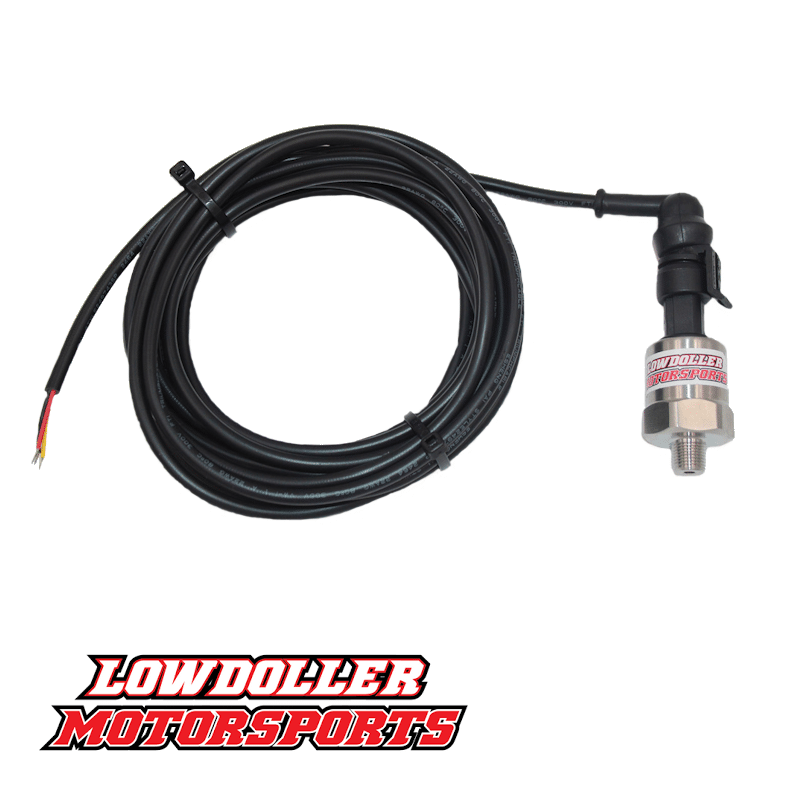

This combo package is perfect for monitoring manifold pressure for a wide range of boost levels. It includes a 4 Bar MAP Sensor for high-boost applications and a 1-to-3 Bar MAP Sensor, ensuring accurate data in any performance setup. The 15-foot cable and 90° boot make installation easy, even in tight or custom engine bays.

Features:

• Versatile Range: Supports 4-bar and 1-to-3 bar configurations, making it perfect for naturally aspirated and boosted setups

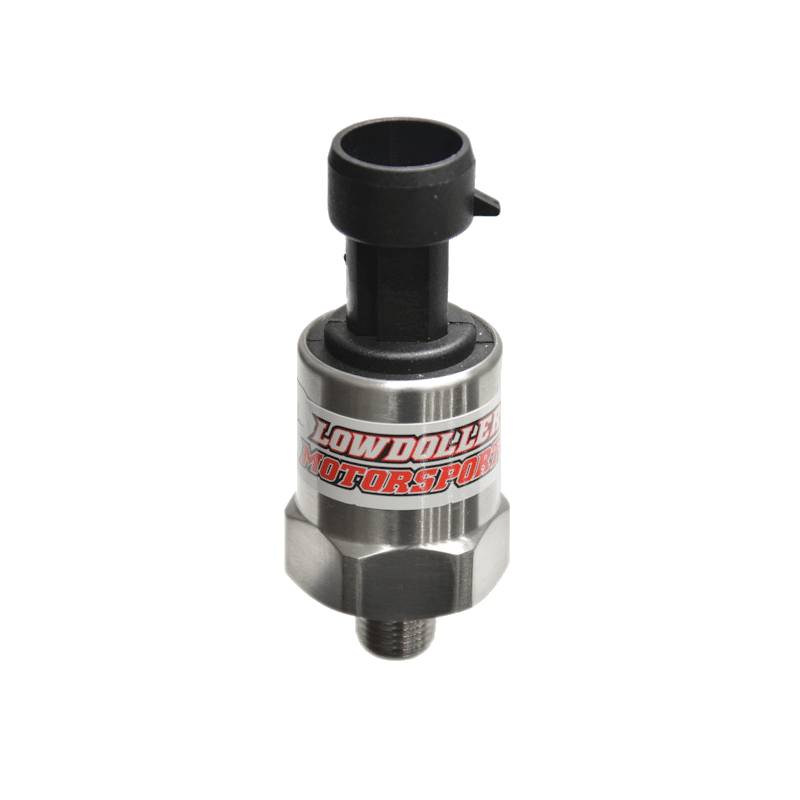

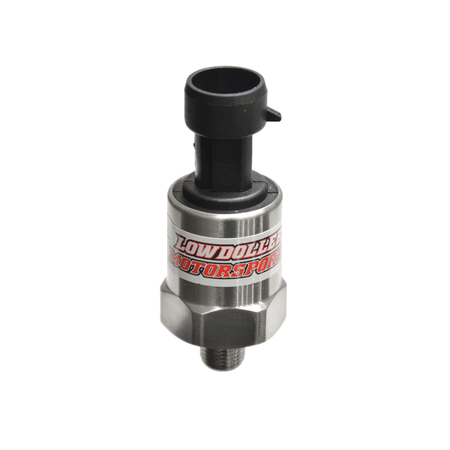

• Screw-In Design: The sensor features a screw-in 1/8″ NPT style, which offers better sealing and durability compared to the standard nipple style
• 15ft Long Cable: Provides ample length for mounting the sensor where needed.
• 90° Boot: Offers flexibility and ease of connection in compact areas
• Durable Build: Ensures long-lasting performance and precise readings under demanding conditions

Specifications:

• MAP Sensor Types: 4 Bar and 1-to-3 Bar
• Input Voltage: 5V reference
• Output Voltage Range: 0.5V to 4.5V
• Cable Length: 15 feet
• Boot Style: 90° angle for secure and compact connection
• Application: Compatible with most aftermarket and OEM ECUs

Sensor Input/Output Values:

• Scaled in PSI
  • 0.0V = -21.97 PSI    5.0V = 50.78 PSI
  • 0.5V = -14.7 PSI      4.5V = 43.5 PSI
• Scaled in kPa
  • 0.0V = -50.48 kPa      5.0V = 450.12 kPa
  • 0.5V =    0 kPa      4.5V = 400 kPa

Wiring:

• Red: 5V Vref
• Black: Sensor Ground
• Yellow: Signal Output to ECU

Included in Box:

• 4 Bar MAP Sensor
• (Optional) 15ft Cable with 90° Boot
