Electronic Boost Control (EBC) Solenoid Kit

Enhance your boost control with our high-performance electronic boost control solenoid, compatible with MS3Pro, MS3X, MSPNP-Pro, and other DIY Style MegaSquirt EMS systems (with the appropriate mods). This solenoid adjusts boost pressure to your turbo wastegate, offering precise control and reliability.

Features:

• Compatibility: Works with MS3Pro, MS3X, MSPNP, DIYPNP, and other electronic boost controllers
• Frequency: Operates at 19.5-40 Hz
• Pressure Range: Maximum pressure of 125 psi, suitable for high-pressure setups
• Usage: ideal for use with Single Port or Dual Port Wastegates
• Replacement: Direct wire-in replacement for the discontinued GM EBC Solenoid. Lower duty cycle may be needed; reduce by 30% when replacing a GM valve and adjust as necessary.
• Connections: Includes 1/8″ barb fittings and mounting hardware. Ports are 1/8″ NPT pipe thread for alternative connections
• Wiring: Connect one wire to a 12V source and the other to the ECU. The valve wiring is not polarized, so either wire can be used for 12V Power.

Specifications:

• Maximum Pressure: 125 psi
• Operating Frequency: 19.5-40 Hz
• Material: Durable construction for performance applications
• Temperature: Avoid mounting the valve in direct extreme heat; keep maximum valve temperatures under 122°F

Installation:

Note: Do not plug the disconnected port; it must be vented to the atmosphere.

Wiring

• One wire connects to a 12V Power
• Other wire connects to the ECU
• Note: wiring is not polarized, so it does not matter which wire goes to 12V Power

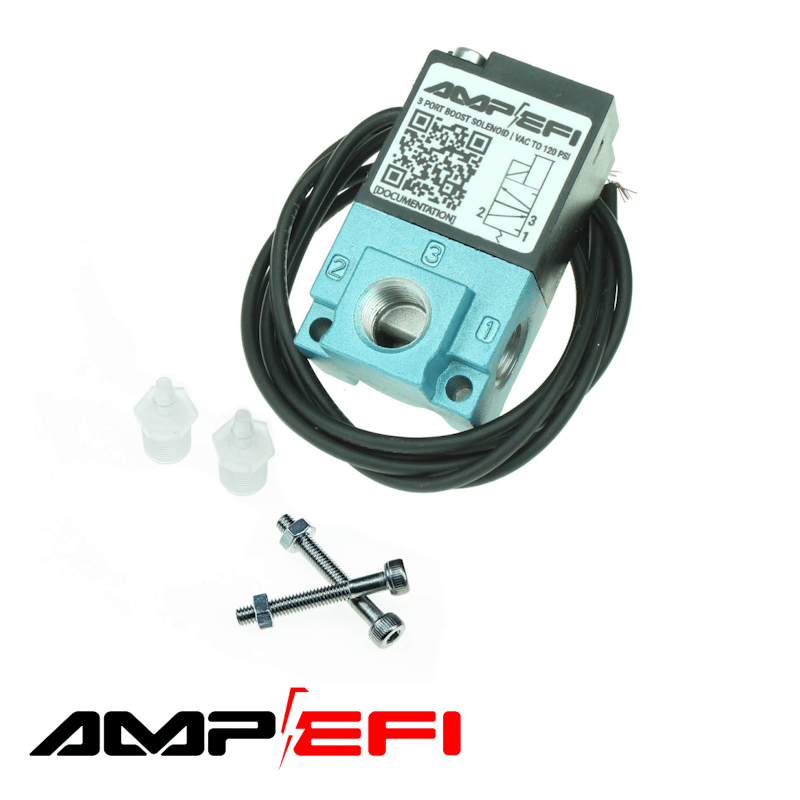

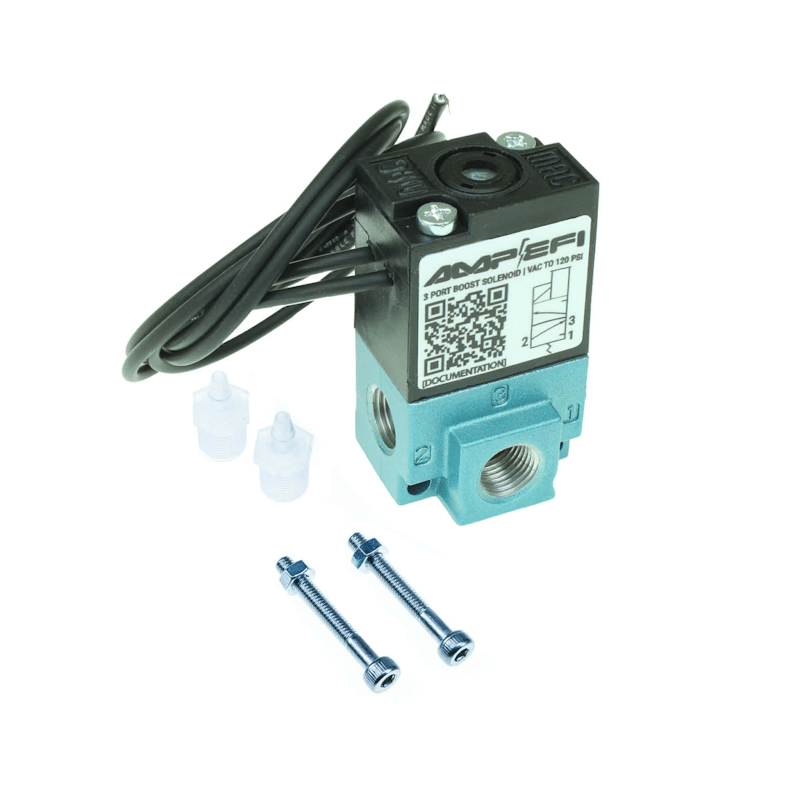

Included in Box:

• Electronic Boost Control Solenoid
• 1/8″ Barb Fittings
• Mounting Hardware
