AXM-150 Single Channel Ignition Module

In stock
No reviews
$69.99
Product details
  • Vendor AMP
  • SKU AXM-150
Documentation
  • Installation Guide Link
Description Reviews

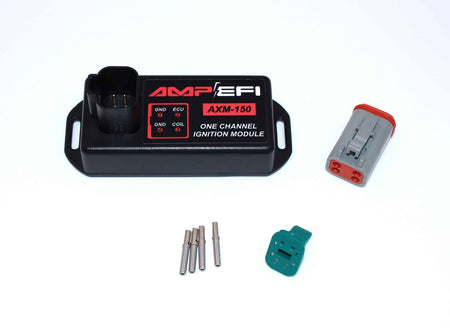

The AXM-150 Single Channel Ignition Module is the single-channel version of our proven 4-channel QuadSpark. It’s purpose-built to drive one high-current ignition coil from a 5V logic-level ECU ignition output, ideal for conventional distributor setups.

One major benefit of the AXM-150 is that it allows users to bypass the OEM ignition module, giving the ECU full control over dwell and spark duration.

Ideal for

The AXM-150 is a perfect fit for MS3Pro Mini users running a single dumb coil with a distributor-based ignition system.

Common Use Cases

  • Single coil distributor applications

Technical Details

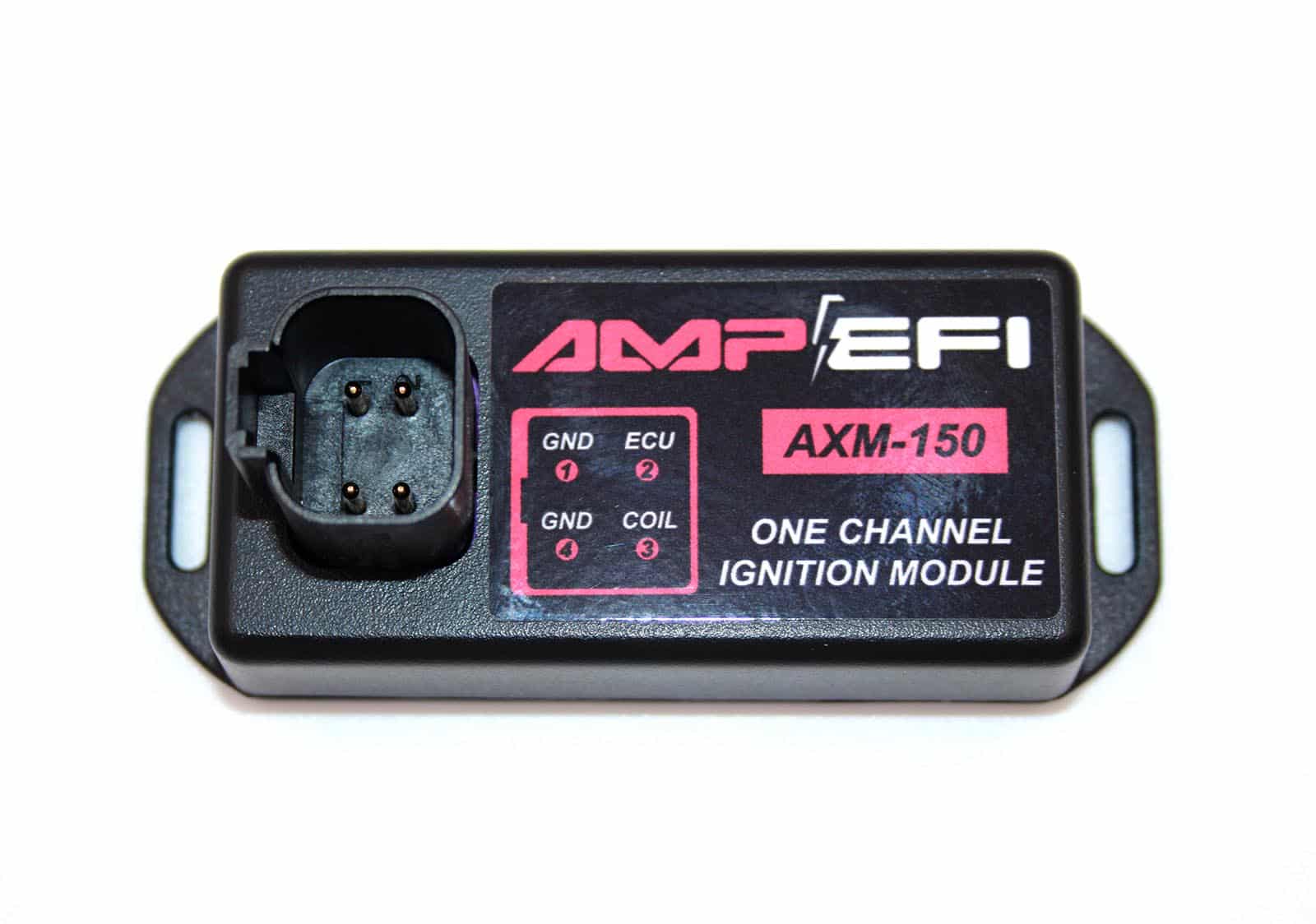

  • Pins 1 and/or 4: Ground (typically cylinder head)

  • Pin 2: Logic ignition signal from ECU (Yellow Spark A wire on MS3Pro)

  • Pin 3: Connects to coil negative terminal
