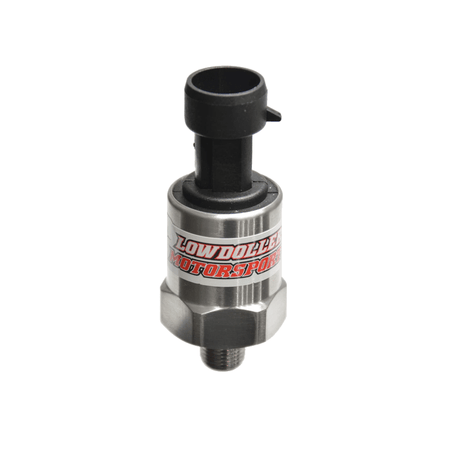

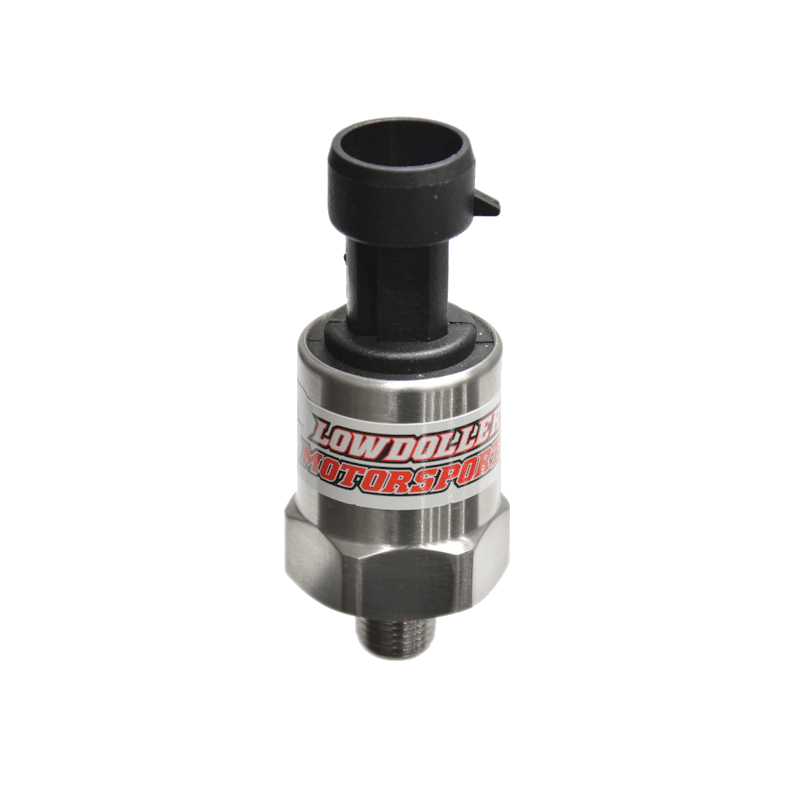

LDM 1/8 NPT 3-Bar MAP Sensor

In stock
No reviews
$71.99
Product details
  • Vendor Low Doller Motorsports
  • SKU LDM-899003
Description Reviews

This combo package is perfect for monitoring manifold pressure for a wide range of boost levels. It includes a 1/8 NPT 3-Bar MAP Sensor for high-boost applications and a 1-to-2 Bar MAP Sensor, ensuring accurate data in any performance setup. The 15-foot cable and 90° boot make installation easy, even in tight or custom engine bays.

Features:

  • Versatile Range: Supports 3-bar and 1-to-2 bar configurations, making it perfect for naturally aspirated and boosted setups
  • Screw-In Design: The sensor features a screw-in 1/8″ NPT style, which offers better sealing and durability compared to the standard nipple style

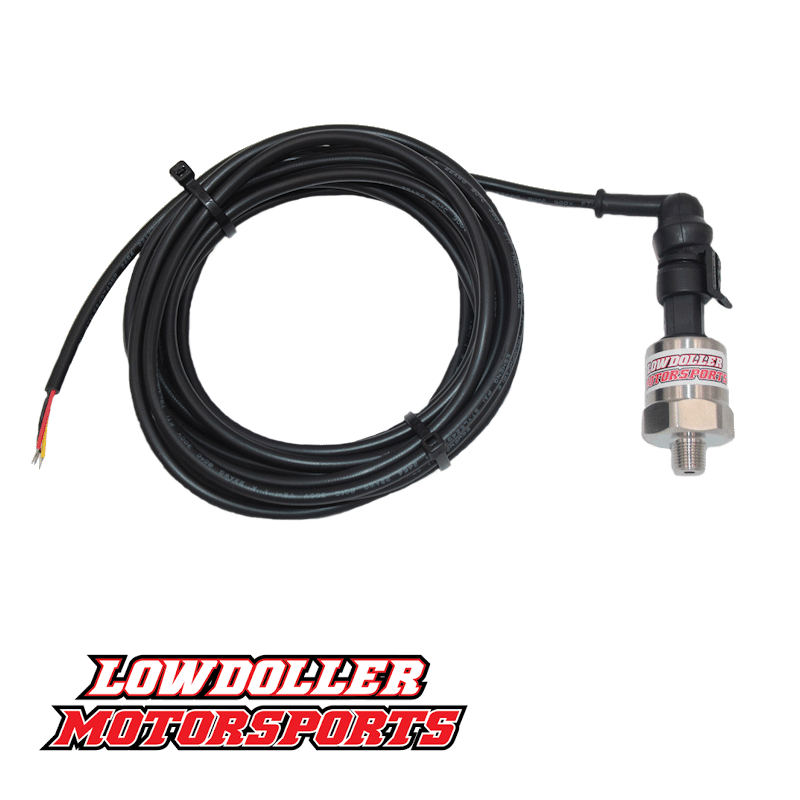

  • 15ft Long Cable: Provides ample length for mounting the sensor where needed.
  • 90° Boot: Offers flexibility and ease of connection in compact areas
  • Durable Build: Ensures long-lasting performance and precise readings under demanding conditions

Specifications:

  • MAP Sensor Types: 3 Bar and 1-to-2 Bar
  • Input Voltage: 5V reference
  • Output Voltage Range: 0.5V to 4.5V
  • Cable Length: 15 feet
  • Boot Style: 90° angle for secure and compact connection
  • Application: Compatible with most aftermarket and OEM ECUs

Sensor Input/Output Values:

  • Scaled in PSI
    • 0.0V = -19.94 PSI    5.0V = 34.44 PSI
    • 0.5V = -14.5 PSI     4.5V = 29.0 PSI
  • Scaled in kPa
    • 0.0V = -37.48kPa    5.0V = 337.45kPa
    • 0.5V =  0 kPa      4.5V = 300 kPa

Wiring:

  • Red: 5V Vref
  • Black: Sensor Ground
  • Yellow: Signal Output to ECU

Included in Box:

  • 3-Bar MAP Sensor
  • (Optional) 15ft cable with 90° boot
