AXM-130 Dual Driver/Inverter

In stock
No reviews
$69.99
Product details
  • Vendor AMP
  • SKU AXM-130
Documentation
  • Installation Guide Link
Description Reviews

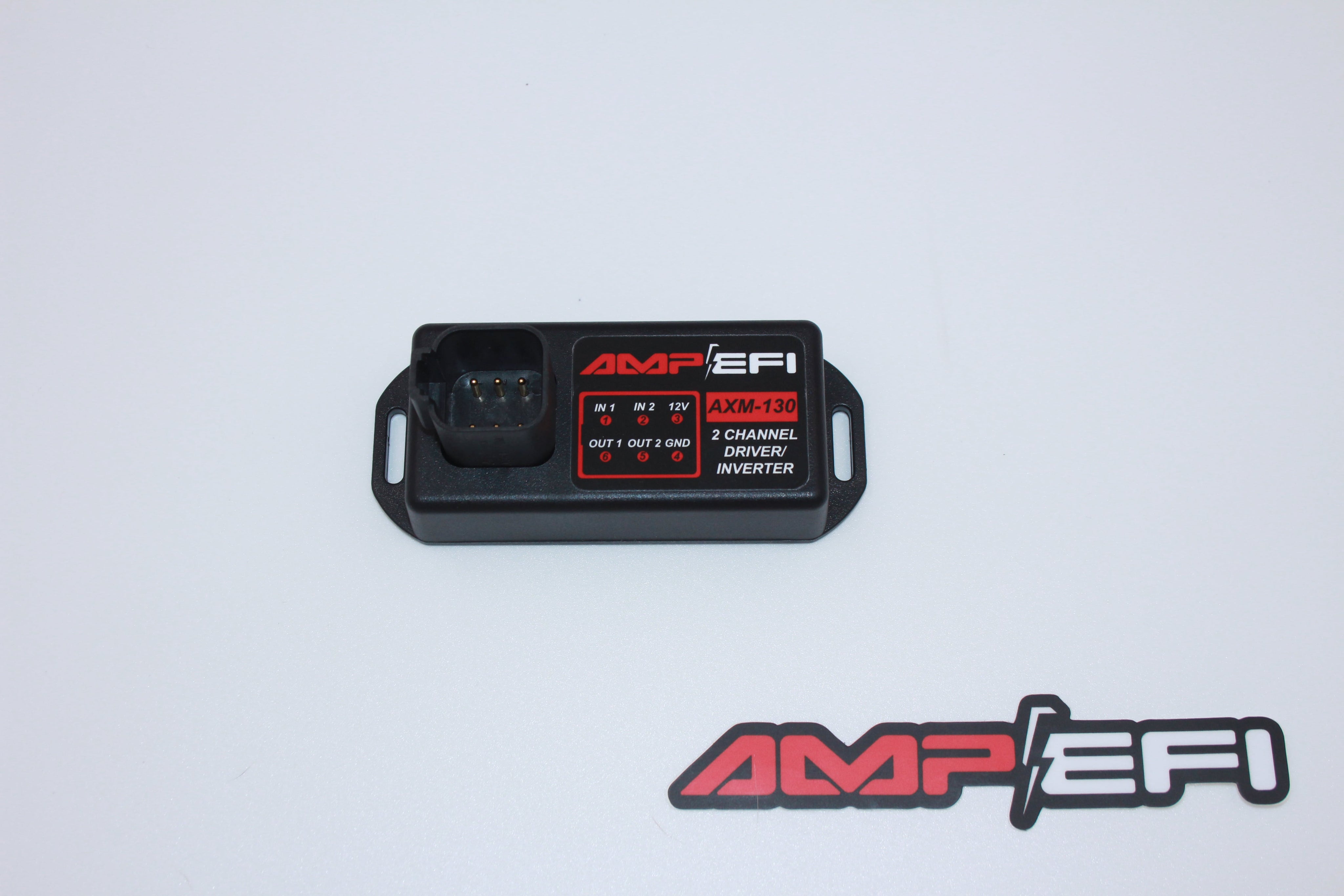

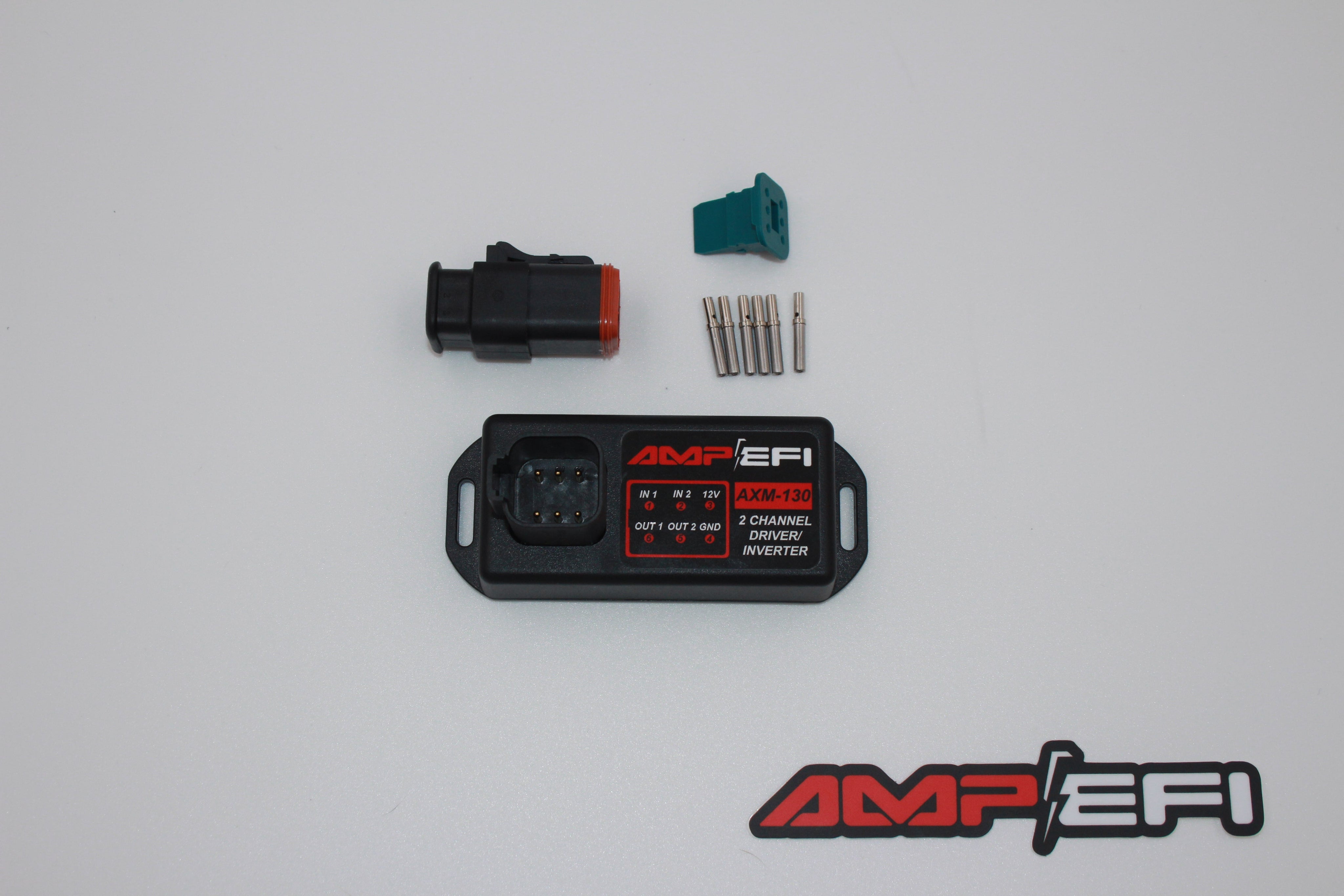

The AMP EFI AXM-130 Dual Driver / Inverter is the ideal companion for your MS3Pro Mini. This module converts spare 5V logic-level spark outputs into signals compatible with ignition systems that require a 12V trigger, including Ford TFI modules and MSD CDI boxes.

Key Features

  • Dual Input Support: Accepts up to two 5V logic-level spark outputs.

  • Versatile Output: Converts inputs into high-current drivers for low-side (ground) or high-side (12V) triggered outputs.

  • Selectable Output Configuration: Configure each output using jumpers under the cover.

    • Normal (going-high – 12V): Suitable for TFI modules, CDI boxes, tachometers, etc.

    • Inverted (going-low – ground): Ideal for relays, solenoids, and other ground-switched loads.

  • Activation Logic: Output is activated whenever the corresponding 5V input signal is active.

Applications

  • Ford TFI Ignition Modules

  • MSD Capacitive Discharge Ignition (CDI) Systems

  • Ignition Boxes

  • Relays and Fans

  • Solenoids and Boost Controllers

  • Water-Methanol Injection Systems

  • Nitrous Control Systems

Why You Need It

This module is essential when integrating the MS3Pro Mini with Ford TFI or MSD CDI ignition systems. It ensures proper signal compatibility while adding flexibility to use unused spark outputs for controlling other devices.
