IGN-4 Four-Tower Ignition Coil Pack

In stock
No reviews
$54.99
Product details
  • Vendor AMP
  • SKU IGN-4
Description Reviews

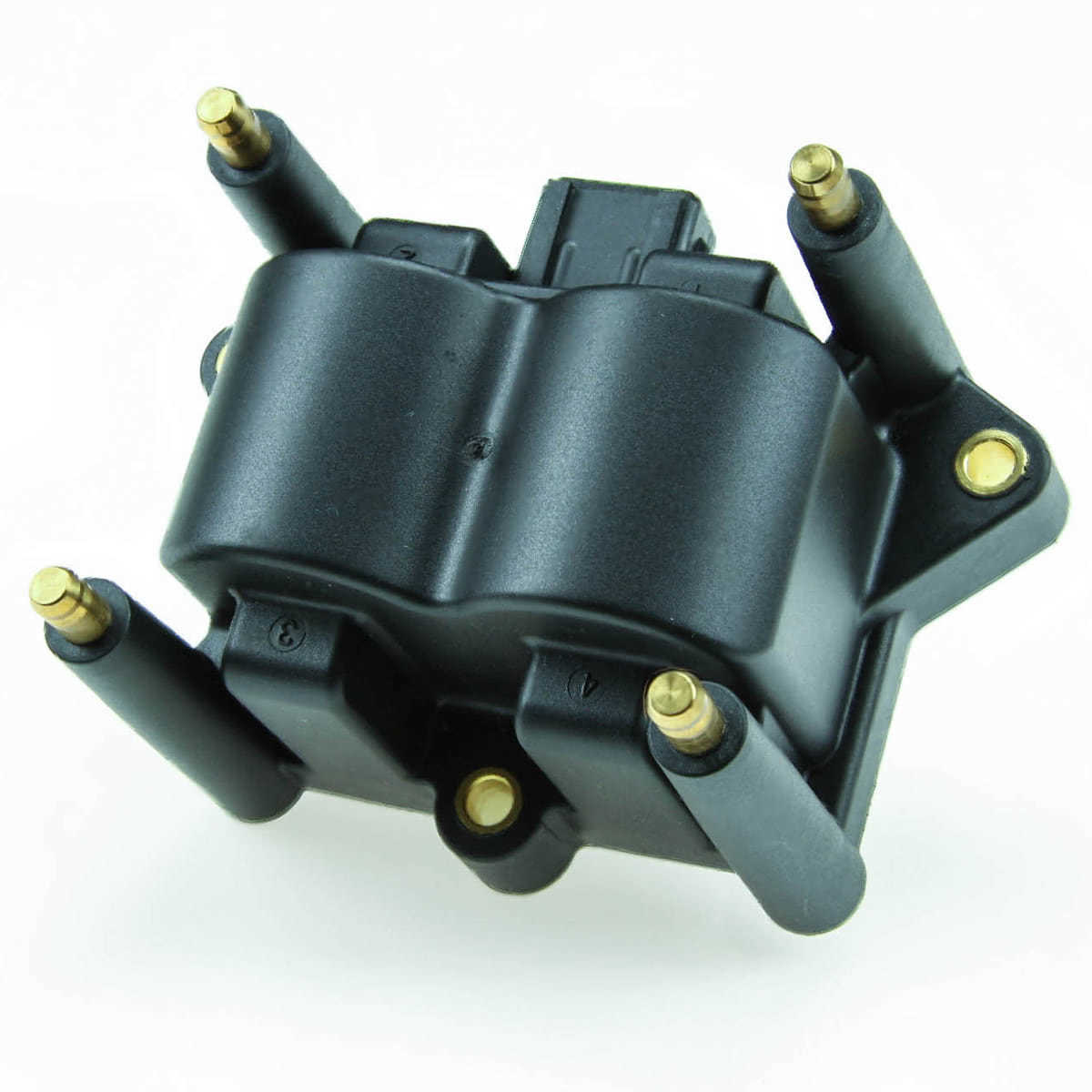

The IGN-4 is a compact, affordable, and high-output four-tower ignition coil—ideal for distributor-less ignition (DIS) systems on four-cylinder engines, or two coils can be used for a V8 in wasted spark configuration. It delivers strong spark performance similar to our IGN-1A coil but does not include a built-in ignitor, making it perfect for pairing with external modules like BIP373s or a QuadSpark.

Its rugged design accepts standard HEI-type spark plug boots, and the coil’s performance can be dialed in with dwell settings between 3.0 to 3.5 ms, depending on your application. Each side fires two posts in wasted spark mode. The coil is vibration resistant, compact, and built to handle serious racing environments—just don’t exceed recommended dwell or duty cycles.

Note: These are performance/race coils and are not warrantied. Excessive dwell or incorrect configuration may lead to failure.

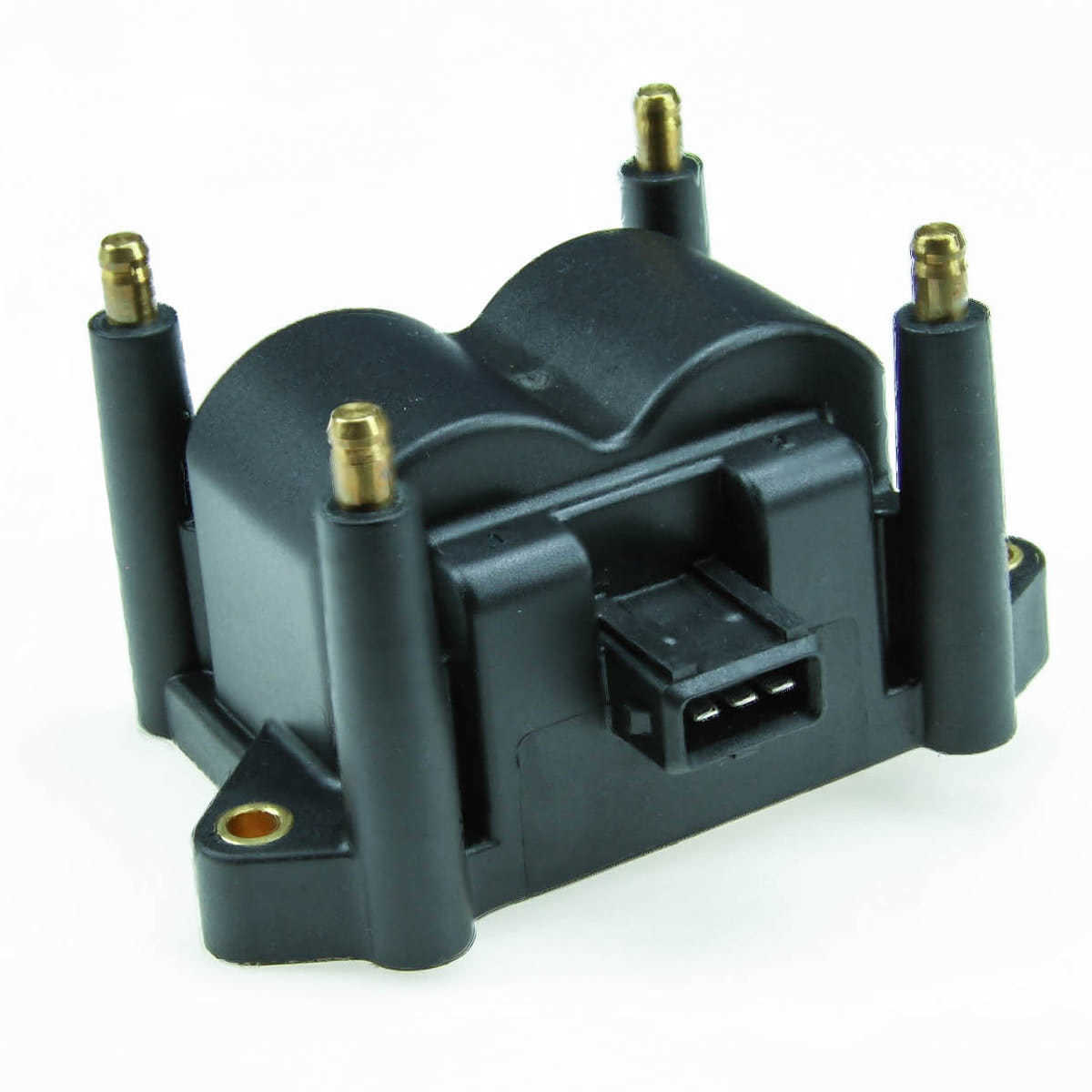

Connector Pinout

  • Center Pin – +12V power input

  • Left Pin – Coil driver input for left-side towers

  • Right Pin – Coil driver input for right-side towers

No ground is required at the coil mounts.

Dimensions

  • Width: 4 7/8″

  • Depth: 3 1/4″

  • Height: 2 5/8″

Electrical Specifications

  • Primary Resistance: 0.5 Ω ±10%

  • Primary Inductance: 4.8 mH ±15%

  • Secondary Resistance: 8.5 kΩ ±20%

  • Secondary Inductance: 22.5 H ±20%

  • Output Voltage: 41 kV ±10%

  • Output Energy: 118 mJ ±7%

  • Peak Secondary Current: 100 mA ±7%

  • Arc Duration: 3.2 ms ±10%

  • Turns Ratio: 71:1

  • Max Battery Voltage: 17V

  • Standard Dwell: 3.0 ms
