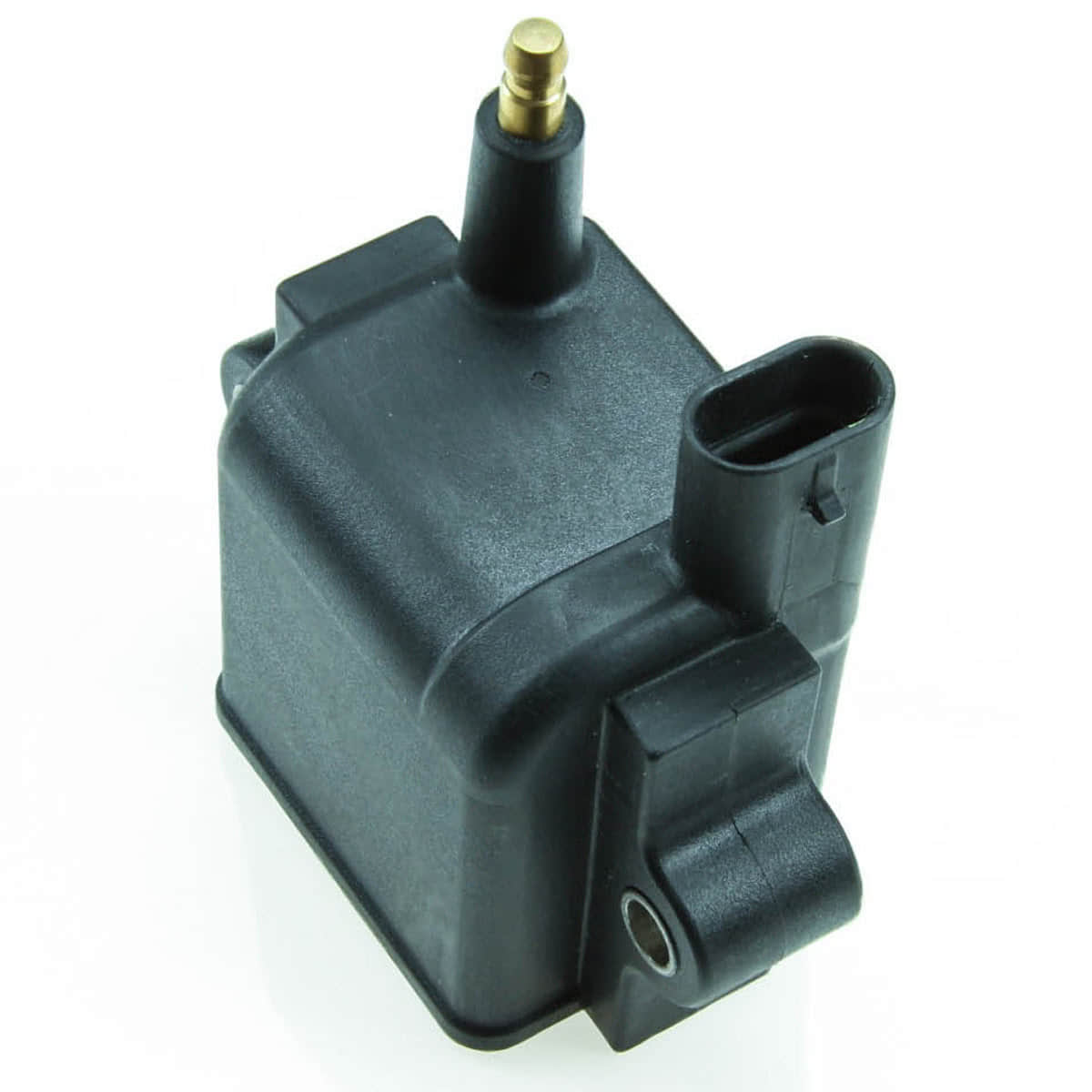

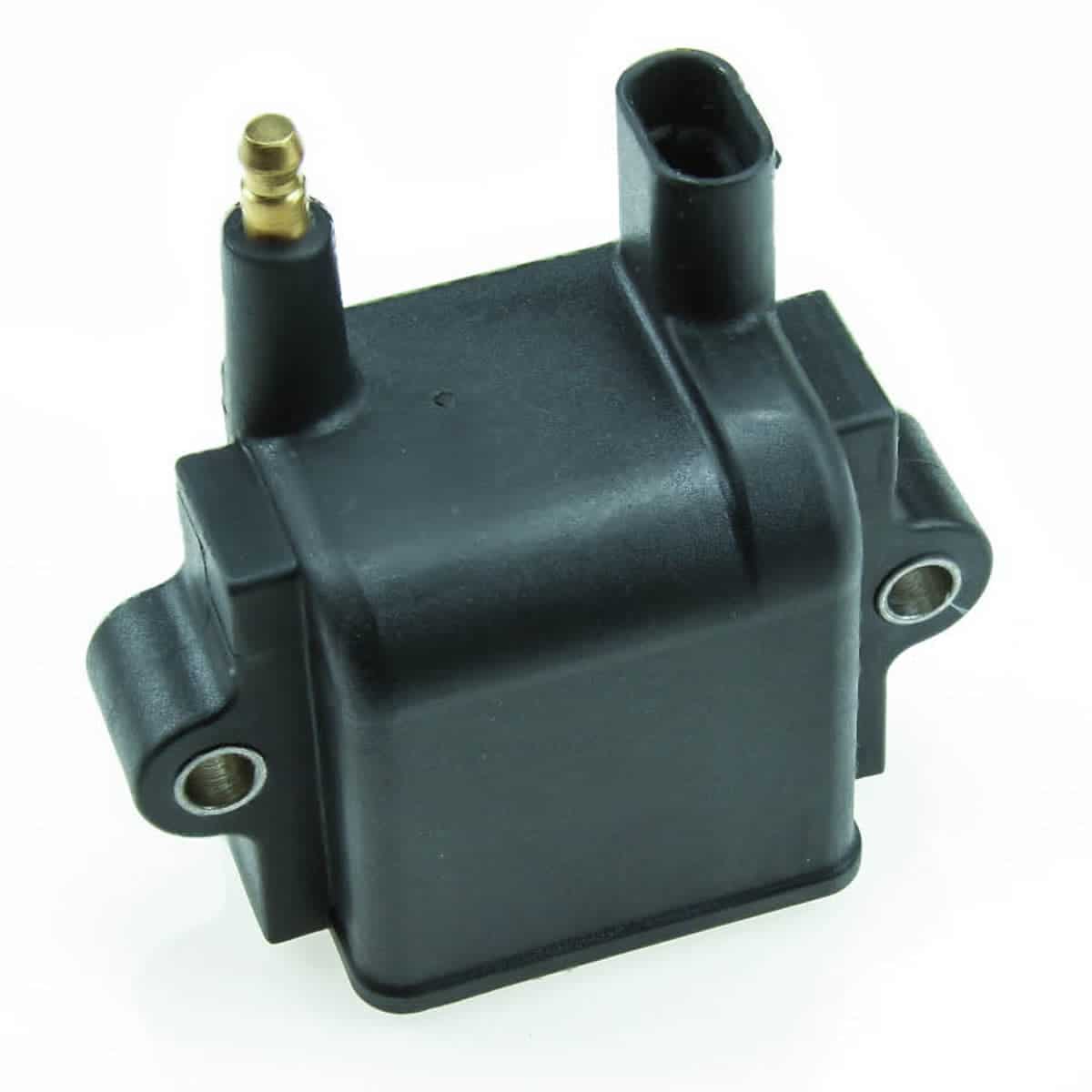

IGN-1 Inductive Ignition Coil

In stock
No reviews
$49.99
Product details
  • Vendor AMP
  • SKU IGN-1
Description Reviews

The IGN-1 is a powerful, affordable ignition coil that shares the same core design as the renowned IGN1A but without the built-in ignitor, making it a flexible solution for both distributor and coil-per-plug systems. Ideal for use with external ignition modules like BIP373s, this coil is vibration-resistant, angle-mountable, and features a secondary ground connection for enhanced electrical isolation and performance stability.

It uses HEI-style spark plug wire boots and is one of the few performance coils in its class with a separate secondary ground—ensuring robust operation even in demanding motorsport environments.

Note: For capacitive discharge ignitions (e.g., MSD systems), use the IGN1-CD instead.

Key Features

  • Same internals as IGN1A, without the integrated ignitor

  • Suitable for both distributor and coil-per-plug setups

  • Requires external ignition module (e.g., BIP373 or similar)

  • Built for high vibration resistance and flexible mounting

  • Uses HEI plug wire boots

  • Secondary ground helps reduce noise and improve spark consistency

Connector Pinout

  • A (outermost) – 12V Power (connect to battery)

  • B (center) – Negative trigger (to ignition module)

  • C (innermost) – Secondary ground (to cylinder head)

Electrical Specifications

  • Primary Resistance: 0.5 Ω ±10%

  • Primary Inductance: 4.8 mH ±15%

  • Secondary Resistance: 8.5 kΩ ±20%

  • Secondary Inductance: 22.5 H ±20%

  • Output Voltage: 41 kV ±10%

  • Output Energy: 118 mJ ±7%

  • Peak Secondary Current: 100 mA ±7%

  • Arc Duration: 3.2 ms ±10%

  • Turns Ratio: 71:1

  • Standard Dwell: 3.0 ms
