12.3″ Pro Dash – Universal Bezel

In stock
No reviews
$999.99
Product details
  • Vendor Digital Dash EFI
  • SKU Dash-12-PRO-Uni-Bezel
Documentation
  • Installation Guide Link
  • User Manual Link
Description Reviews

Build Time: Up to 6 Weeks

The DD-EFI 12.3″ Widescreen Digital Dash is the first fully Plug-N-Play solution designed for any MegaSquirt-equipped vehicle. Its ultra-wide 12.3″ display gives you an expansive workspace to show customizable dashboards and gauges with clarity and precision. This is a complete all-in-one enclosure ready for direct installation into your vehicle.

Internal I/O Module

  • 7 Digital Inputs (e.g., Turn Signals, High Beam)

  • 5 Analog Inputs (e.g., Oil Pressure, TPS)

  • 1 Fuel Level Input

  • 2 PWM Outputs

  • 2 Speed Inputs

CanBus Communication

  • Seamless interface with MegaSquirt ECUs

  • I/O expansion includes 5 additional sensors, fuel level input, 7 digital inputs, 2 PWM outputs, 2 speed inputs

Built-in GPS Module

  • Real-time vehicle speed

  • Latitude/Longitude tracking

  • Fuel economy, trip meter, odometer

Software & Storage

  • Full version of TunerStudio for in-dash tuning

  • MegaLogViewer and AnyDesk pre-installed

  • 32GB internal storage for automatic datalogging

  • Auto-save of tune files

  • Configurable sleep mode and delayed shutdown (default 60 min)

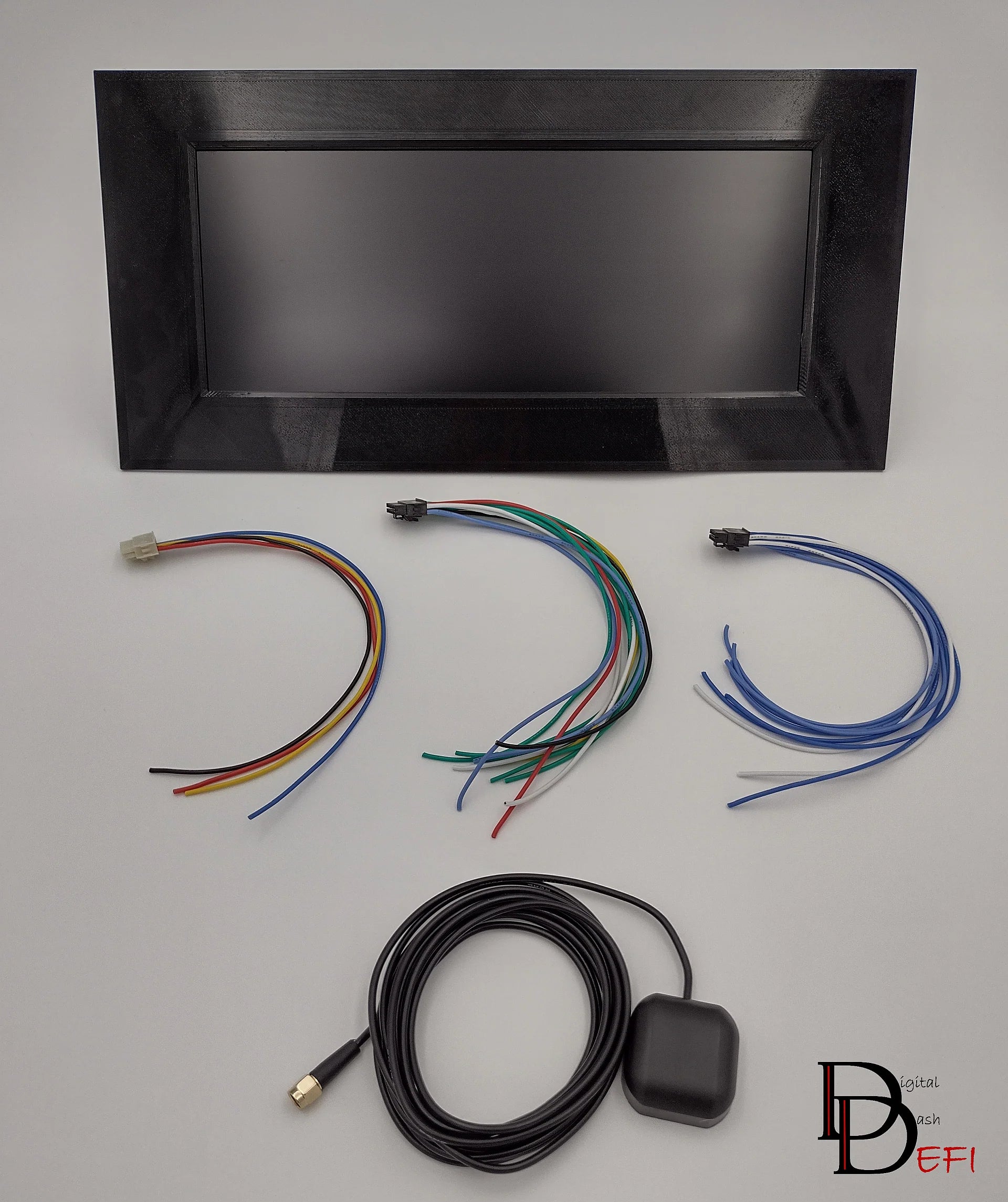

What’s Included

  • DD-EFI 12.3″ Digital Dash

  • Full-color LCD screen

  • Internal GPS

  • 32GB internal storage

  • Power Supply Connector

  • CANBus wiring (H/L) to MS ECU

  • Pre-installed software: TunerStudio, MegaLogViewer, AnyDesk

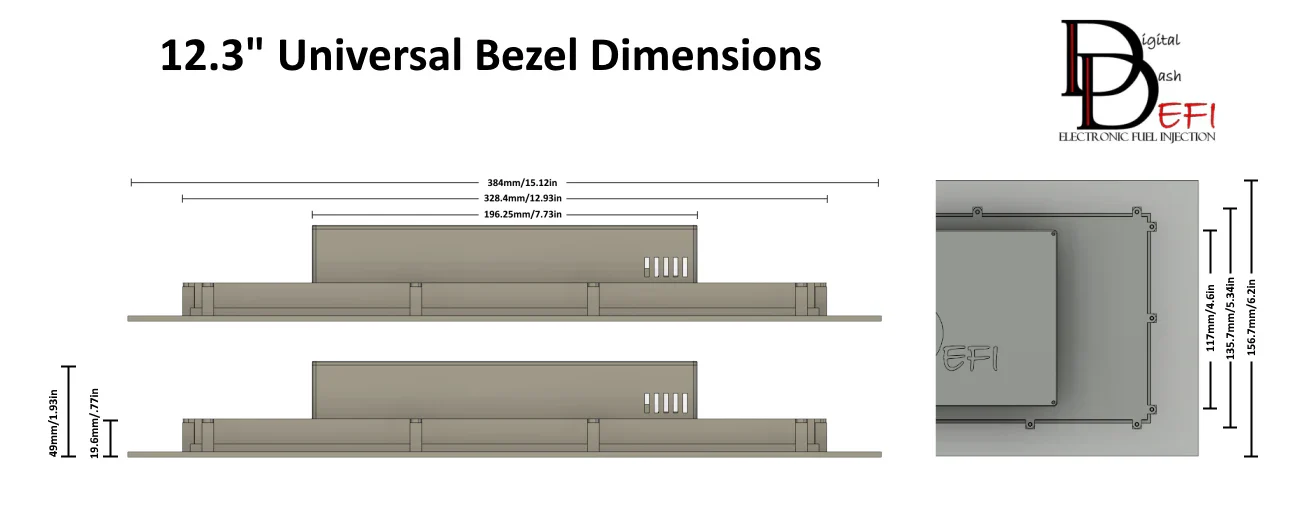

Digital Dash Dimensions

  • Universal Bezel: 7″ (H) x 15″ (W)

  • Display Area: 4.35″ (H) x 11.5″ (W)

  • Surround: 5.8″ (H) x 12.875″ (W) x 0.625″ (D)

  • DD-EFI Computer: 5.125″ (H) x 8.3″ (W) x 1.375″ (D)

  • Overall Depth: 2.25″
