10.3″ Pro Dash – Universal Bezel

Build Time: Up to 6 Weeks

The DD-EFI 10.3″ Widescreen Digital Dash is the first fully Plug-N-Play digital dash designed for any MegaSquirt-equipped vehicle. With a massive 10.3″ ultra-widescreen display, this all-in-one enclosure provides customizable dashboards, in-dash tuning, and extended I/O capabilities—all in a clean, vehicle-ready form factor.

Display & Housing

• 10.3″ ultra-wide full-color LCD

• Universal front bezel: 6″ height × 15″ width (cut-to-fit)

• Ideal for factory cluster integration or direct dash mounting

• Custom bezels available on request

Internal I/O Module

• 7 Digital Inputs (e.g., Turn Signals, High Beam)

• 5 Analog Inputs (e.g., Oil Pressure, TPS)

• 1 Fuel Level Input

• 2 PWM Outputs

• 2 Speed Inputs

CanBus Communication

• Seamless interface with MegaSquirt ECUs

• I/O expansion includes 5 additional sensors, fuel level input, 7 digital inputs, 2 PWM outputs, 2 speed inputs

Built-in GPS Module

• Real-time vehicle speed

• Latitude/Longitude tracking

• Fuel economy, trip meter, odometer

Software & Storage

• Full version of TunerStudio for in-dash tuning

• MegaLogViewer and AnyDesk pre-installed

• 32GB internal storage for automatic datalogging

• Auto-save of tune files

• Configurable sleep mode and delayed shutdown (default 60 min)

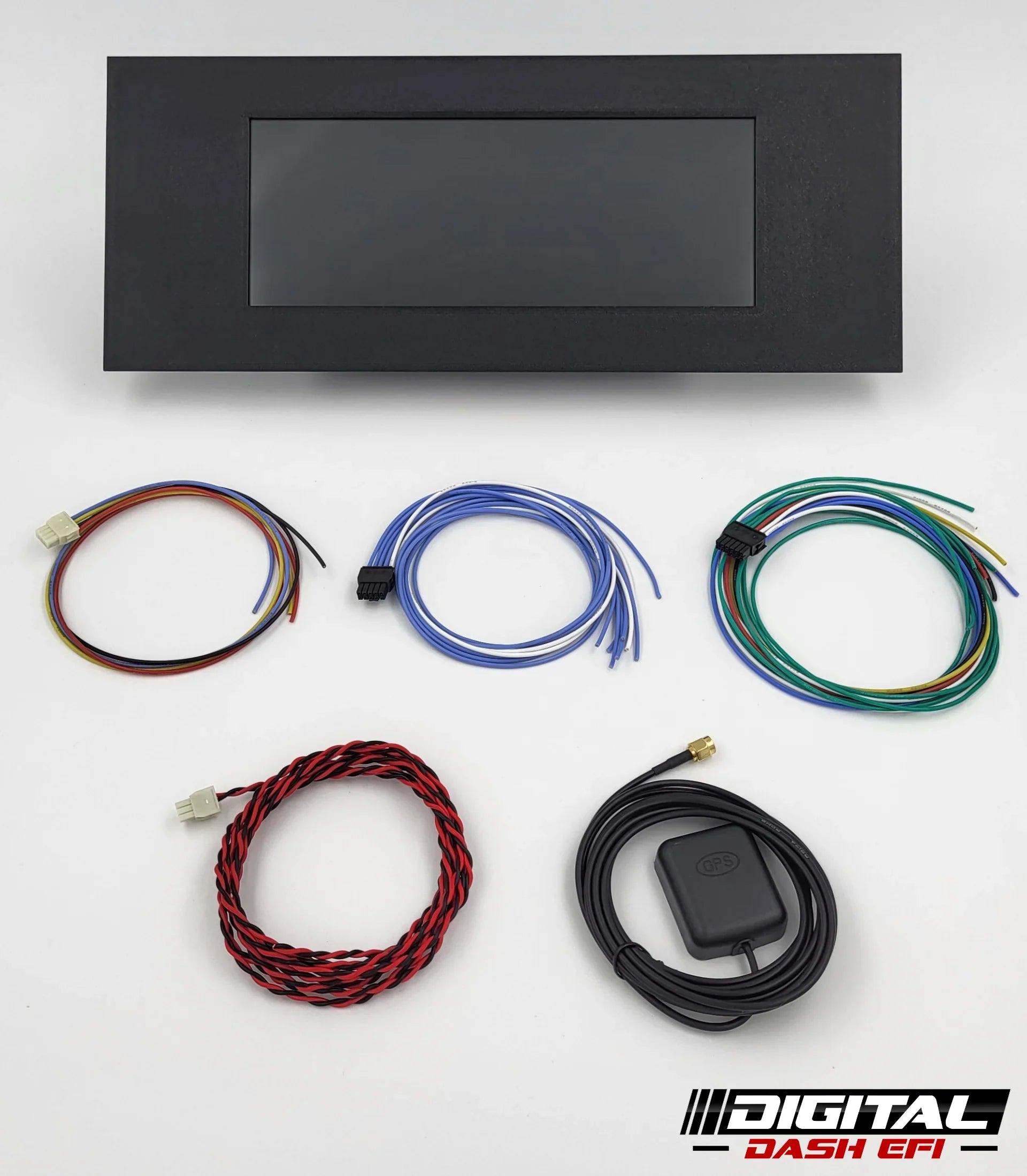

What’s Included

• DD-EFI 10.3″ Digital Dash

• 10.3″ Full Color LCD

• Internal GPS

• 32GB internal storage

• Universal mount with 4 metal-threaded bosses

• Power supply connector:

• CANBus H/L wires for ECU communication

• Pre-installed software: TunerStudio, MegaLogViewer, AnyDesk

Dimensions

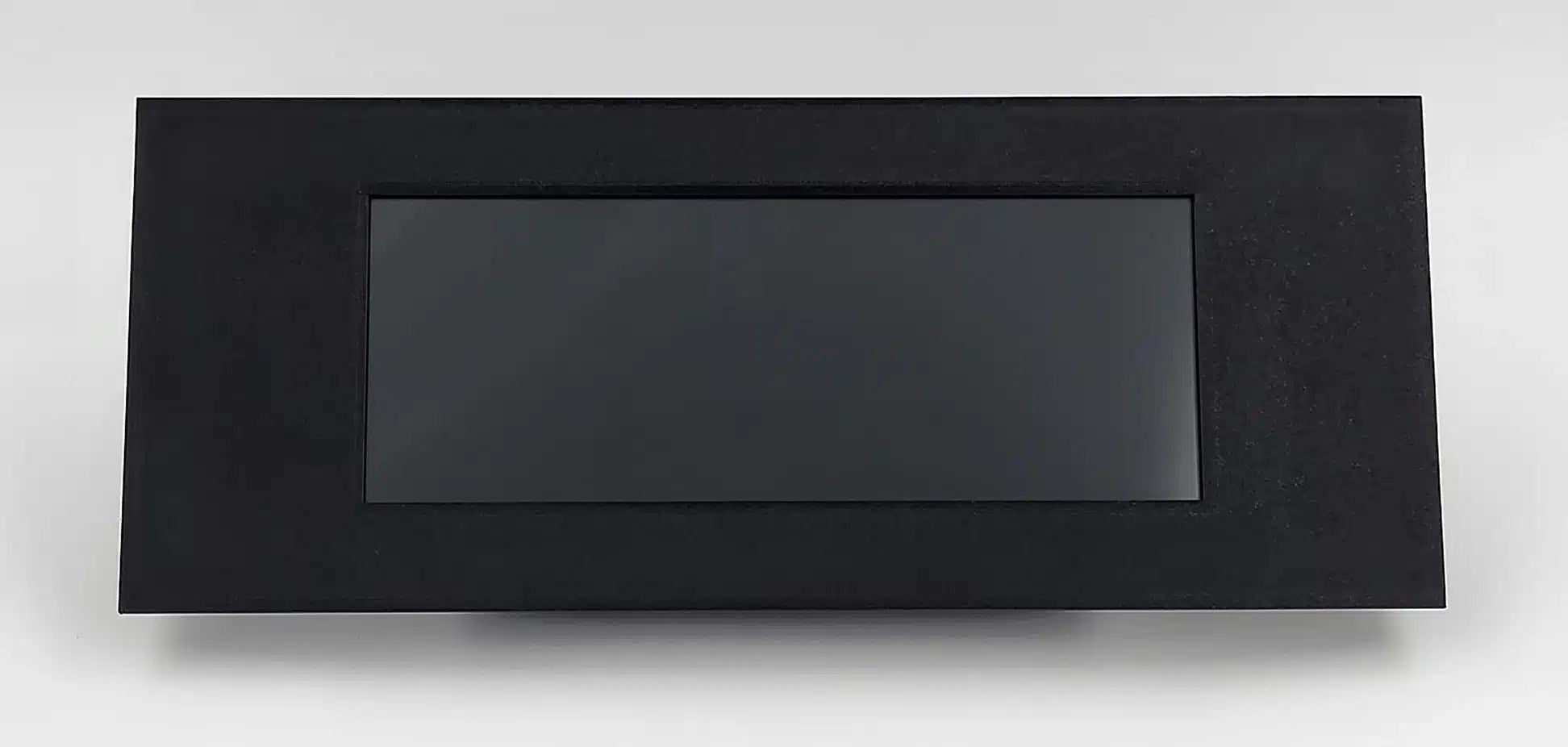

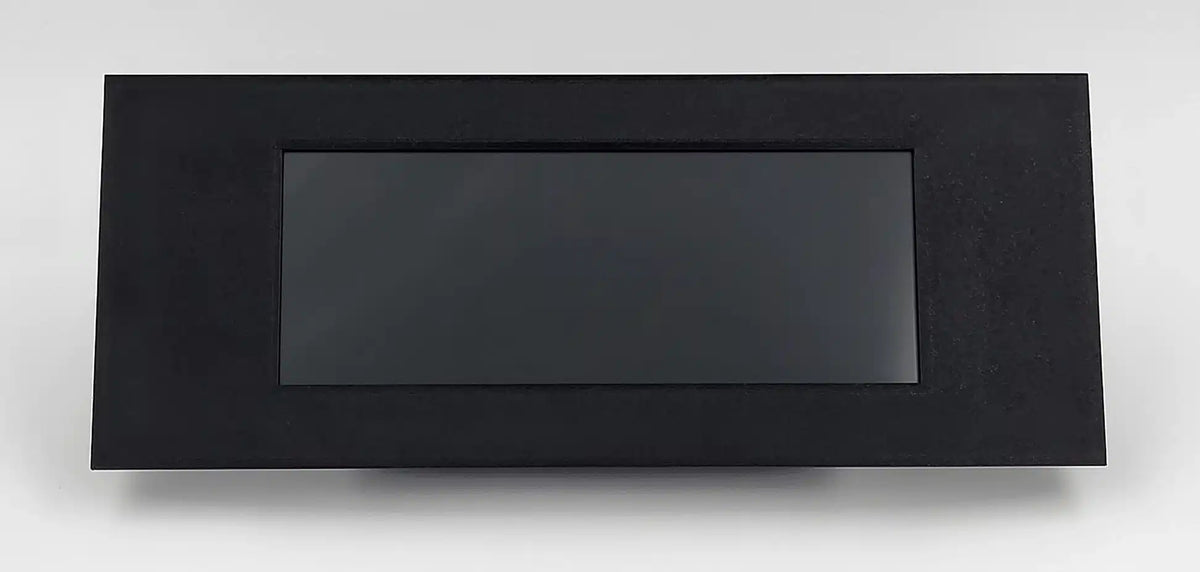

• Universal Bezel: 6″ H × 15″ W

• Display Area: 3.6″ H × 9.6″ W

• Surround: 4.8″ H × 10.9″ W × 0.625″ D

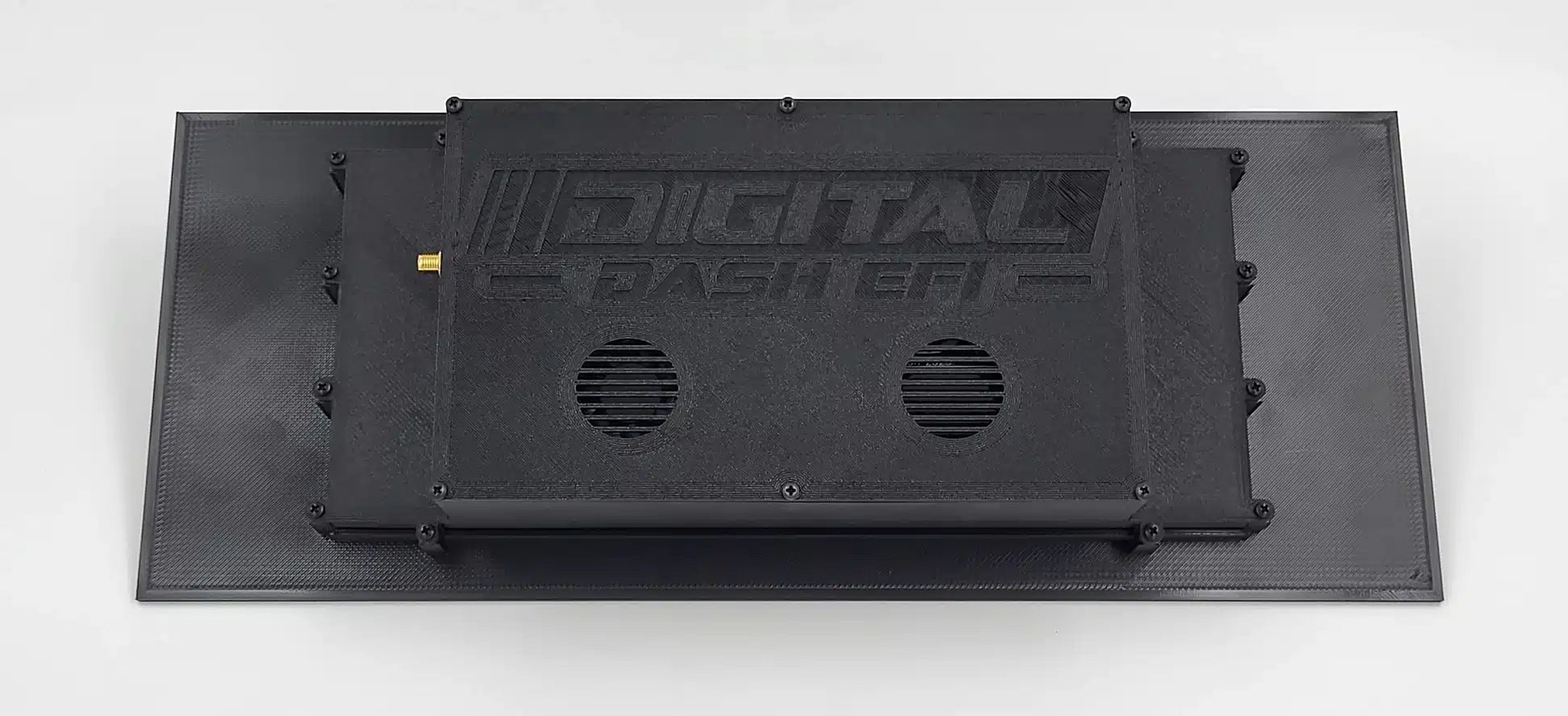

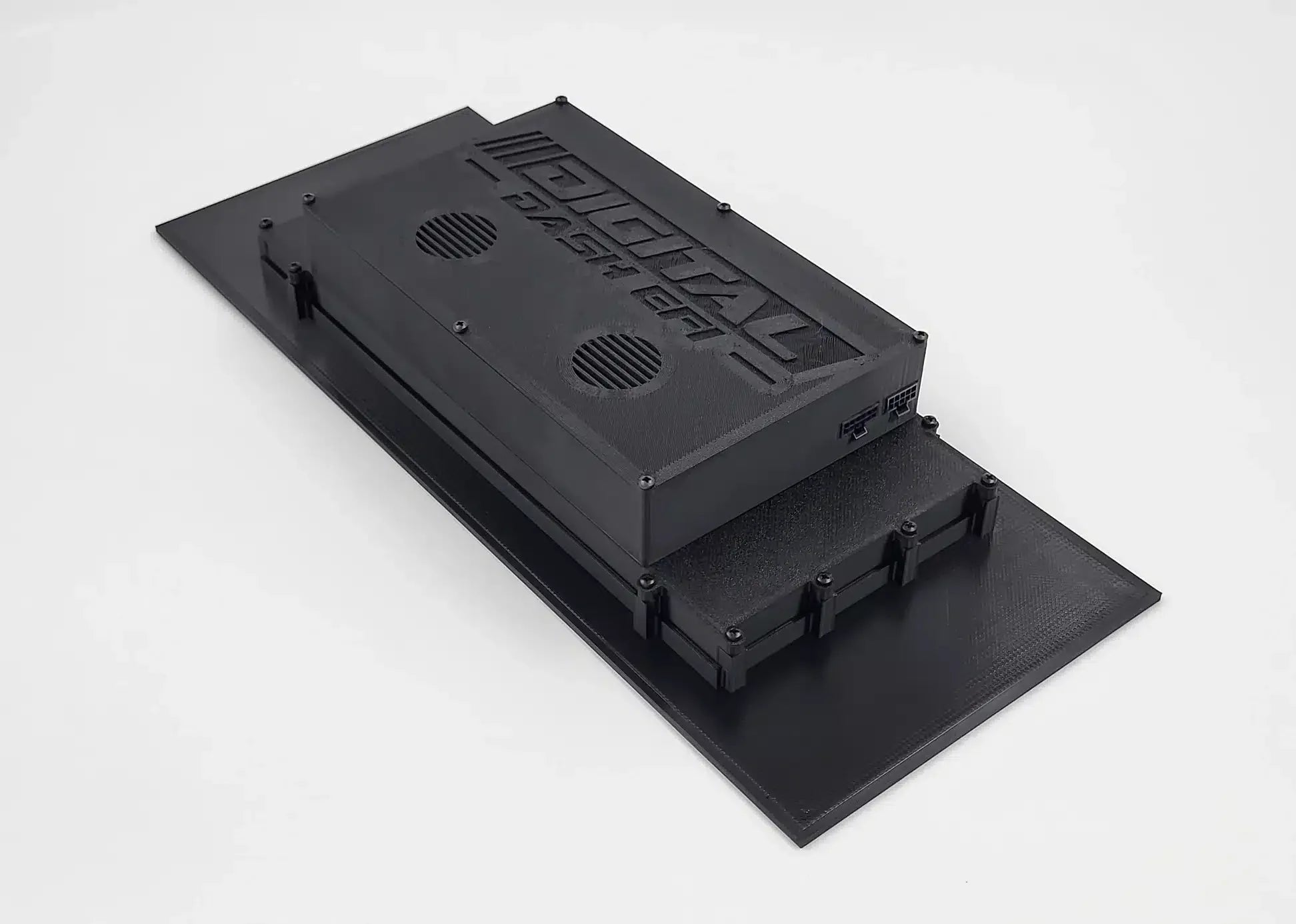

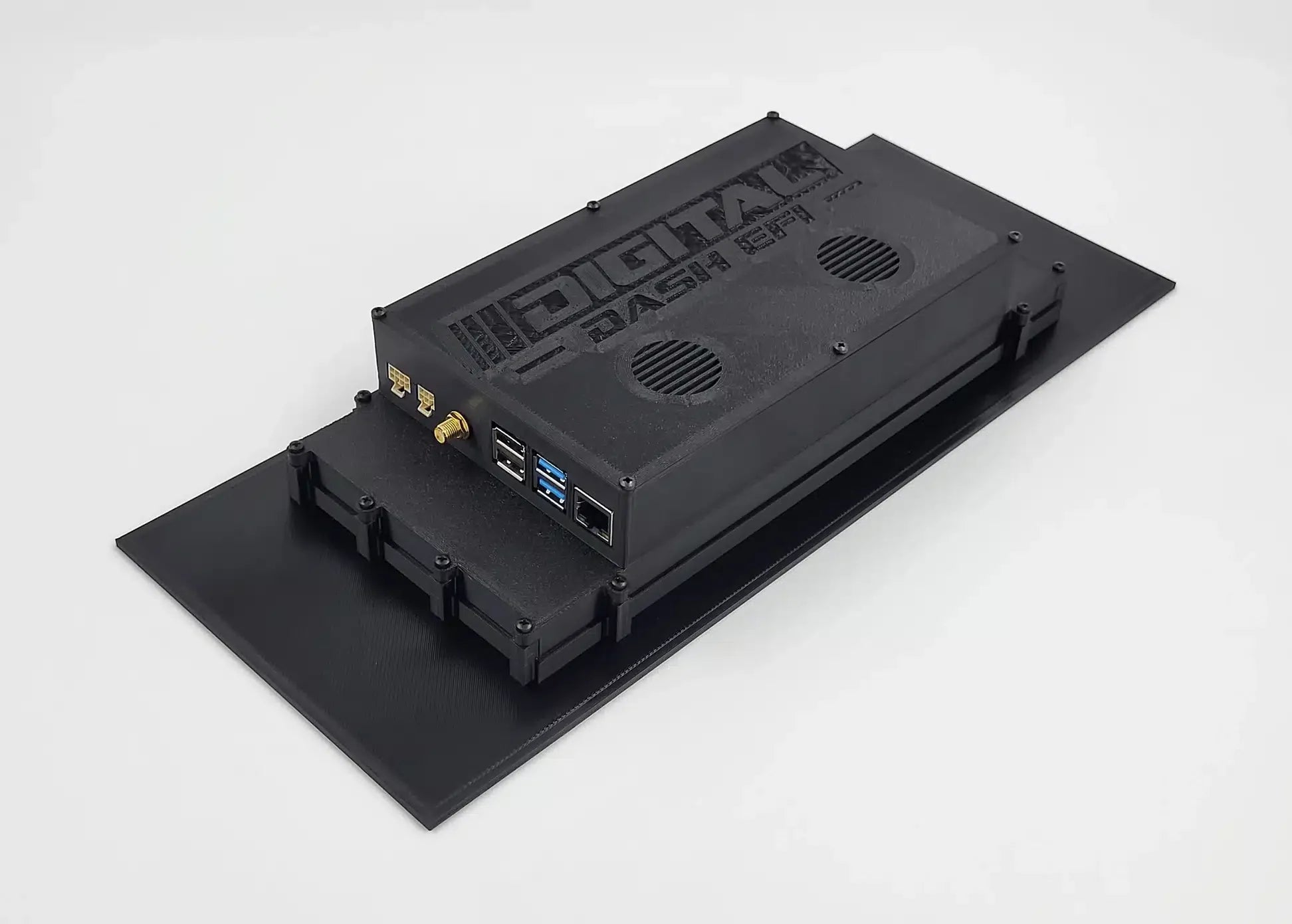

• Computer Module: 5.125″ H × 8.3″ W × 1.375″ D

• Total Depth: 2.25″
