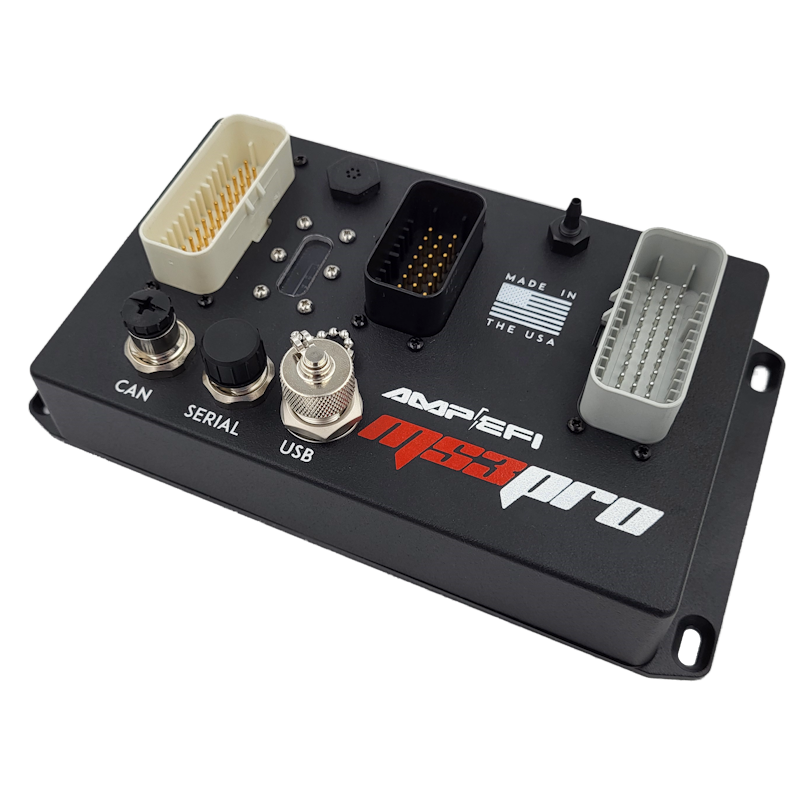

The next evolution of AMP Engine Management’s flagship standalone ECUs has arrived.
Meet the MS3Pro EVO+ and MS3Pro EVO+ HC — redesigned, refined, and ready for modern performance builds.
Replacing the previous MS3Pro EVO and Ultimate models, these two new systems deliver the same professional-grade control tuners expect, now streamlined for today’s ignition technologies and priced to make high-end performance more accessible.
Shop the MS3Pro EVO+
Shop the MS3Pro EVO+ HC
The Evolution of EVO
The MS3Pro EVO+ is built on the proven MS3Pro platform with updated hardware and a focus on flexibility, data speed, and cost efficiency.
We listened to our customers — demand for peak-and-hold injector drivers has dropped sharply, so we removed them to reduce cost while retaining full high-impedance injector capability and high-current output options.
From street builds to professional race cars, the EVO+ series provides the perfect balance of power, precision, and simplicity.
EVO+ vs EVO+ HC — Choose Your Ignition
Two versions are available to perfectly match your ignition system:
MS3Pro EVO+ (Logic-Level / Smart Coil Version)
Optimized for smart coils or ignition systems with built-in igniters (such as IGN1A, GM LS, Toyota 1ZZ, or VAG COP).
-
0–5 V logic-level outputs
-
Lower heat generation
-
Compact, efficient installation
Ideal for engines already using integrated ignition drivers.
MS3Pro EVO+ HC (High-Current / Standard Coil Version)
Built for standard or “dumb” coils that require an onboard ignition driver.
-
Drives high-current coils directly
-
Delivers maximum spark energy
-
Perfect for engines without external igniters
The EVO+ HC delivers all the EVO+ features with the extra punch needed for high-output builds.
Key Features & Highlights
-
Supports up to 12-cylinder engines with sequential fuel injection (or 4-rotor Wankel)
-
On-board 4-bar MAP and barometric sensors
-
92-pin AMPSEAL connection (31 inputs / 33 outputs)
-
5 diagnostic LEDs for quick status and troubleshooting
-
High-speed data logging — 64 channels at 330 Hz
-
Dual DSP knock inputs with fine-tuning control
-
VVT control for up to 4 camshafts (open- or closed-loop)
-
Boost, traction, and launch control with advanced table-based strategies
-
Flex-fuel, water-meth, and nitrous support
-
Three-step rev limiter, burnout, launch, and redline modes
-
CAN bus connectivity for digital dashes and transmission controllers
-
Real-time clock for timestamped datalogs
-
TunerStudio software with self-learning fuel strategies and full customization
Built for Tuners, Racers, and Builders
The MS3Pro EVO+ series delivers the ultimate combination of capability and convenience:
-
Up to 12 sequential injector channels
-
Up to 10 spark outputs
-
12 analog inputs, 12 digital inputs, 5 speed inputs
-
7 digital and 8 PWM outputs for full auxiliary control
Whether you’re managing a twin-turbo V8, a high-rev inline-6, or a rotary engine, the EVO+ gives you total command over fuel, spark, boost, and protection systems — all in a durable, race-ready package.
Smarter, Faster, and Future-Ready
Every MS3Pro EVO+ and EVO+ HC comes pre-loaded with the latest firmware and supports easy over-the-air software updates through TunerStudio — no locked features, no hidden costs.
These ECUs are designed to evolve with your project, providing unmatched flexibility and reliability for years to come.
AMP Engine Management: Precision You Can Tune
At AMP Engine Management, we build engine control systems that empower enthusiasts and professionals to tune with confidence.
The new MS3Pro EVO+ series continues that tradition — delivering top-tier control, simplified wiring, and the data power today’s tuners demand.
